Rubber gaskets are vital and versatile seal components in a wide range of industries and applications. They can be made from various rubber and plastic compounds to withstand any obstacle.
Here at Marco Rubber, our rubber gaskets are available with quick turnarounds and shipping times. We keep standard sizes and materials stocked for rapid delivery. We also offer custom rubber gaskets with quick lead times and low production runs.
Common Applications and Industries
Thanks to their durability, versatility, and ability, rubber gaskets are used in many applications in almost every industry.
Some key industries include:
- Agriculture
- Automotive
- Aerospace
- Plumbing
- HVAC
- Industrial
- Electronics
- Food and Beverage
- Medical Devices
- Oil and Gas
- Marine
- Construction
- Chemical Processing
- Pharmaceuticals
Some key applications include:
- Fuel Systems
- Fluid Delivery Systems
- Pipes and Faucets
- Turbines
- Solar Panels
- Enclosures
- Transmissions
- Processing Equipment
- Pumps
- Generators
- Drilling Equipment
- Housings
- Hydraulic Systems
- Packaging Machinery
- Compressors
- Transformers
- Valves
- Air Conditioning
Rubber Gasket Fabrication
To meet your supply needs, we offer rubber gasket fabrication options!
Die-Cut
Die-cut gaskets are formed using a die to cut or stamp the shape. This involves additional tooling, but is ideal for high-volume production. It is very quick and customizable for simple shapes.
Waterjet-Cut
This method uses a high-pressure water jet to cut out a gasket. While a bit slower than other methods, waterjet cutting is good for producing smaller runs with no or minimal tooling costs. It still allows for flexibility with a wide range of materials.
Laser-Cut
Laser-cutting uses a laser to form the gaskets. This is a very quick option with low or no tooling costs, but it is not ideal for every material due to the heat of the laser. The laser allows for very intricate and detailed designs with high levels of precision.
Lathe-Cut
Lathe-cut gaskets are sliced from extruded rubber tubes using a lathe machine. This produces a very consistent and uniform gasket. This is ideal for high-volume production with simple shapes.

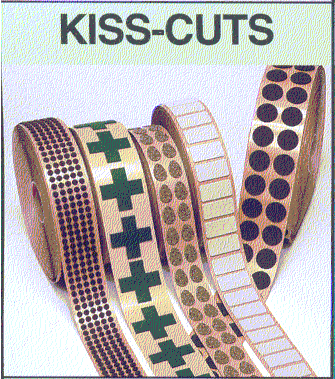

Kiss-Cut
Kiss-cutting is used for adhesive-backed gaskets. Using a precision tool, we cut only the outer layers of the gasket, leaving the adhesive layer intact. While there are setup costs associated with kiss-cut rubber gaskets and limited material options, this is very efficient for high-volume production.
With our experienced engineering team and advanced technology, we can supply custom rubber gaskets to almost any specification. Please submit your detailed drawing for a quote.
We also supply rubber gasket material by the sheet or roll. Explore Rubber Sheets, Rolls, and Strips
Rapid Manufacturing for Low-Production Runs
It can be a headache when you need a custom or rare gasket, but only in a small amount. We've got you covered. We firmly believe waiting on a small sealing component should not delay the whole operation.
Thanks to our large range of options, we can supply rapid manufacturing even for low-production runs.
No matter the size of your order, we offer:
- Expert guidance and consultations.
- Custom solutions.
- Rapid manufacturing with quick turnarounds.
- Attention to detail.
Even for small orders, you still get the Marco Rubber experience and dedication.
Explore Gasket Materials
We offer a wide range of gasket materials including hundreds of rubber and non metallic sealing materials in various thicknesses and durometers.
Some of our most popular materials include:
- Viton® FKM
- Buna-N NBR
- Silicone VMQ
- Fluorosilicone FVMQ
- EPDM
- Aflas® FEPM TFE/P
- TeflonN® PTFE
- Polyurethane
- Parker Materials
- HNBR
- Butyl
- Neoprene
- SBR
- Conductive Rubber
- Pure Gum Rubber
- Mylar®
- Nylon
- Cork
- Vellumoid Brand Materials
- Garlock Brand Materials
- Open & Closed Cell Sponge
- EMI Shielding Materials
Specialized Gasket Applications and Materials
Explore the following articles to learn more about the specific purposes of gaskets in various industries and materials to ensure performance in those applications.
Frequently Asked Questions (FAQ)
Rubber gaskets are used as a sealing tool to prevent leaks.
Rubber gaskets can work without sealant, but occasionally sealant can improve the gasket's ability to seal.
Silicone sealant can help offer resistance against chemicals, stay in place during movement or vibration, and improve waterproofing. Silicone sealant should only be used when necessary, though, as many gaskets are designed to be used without it.
Gasket thickness depends on the flange surface condition, bolt load, and pressure requirements. We can provide guidance based on your specific application details.
The process is very straightforward. Clean the mating surfaces, apply the gasket evenly, and ensure proper alignment before tightening the bolts. Depending on your industry and application, additional steps might be required for regulatory or cleanliness reasons. In that case, our experts can help you identify an exact process.
Lead times for custom gaskets vary depending on the complexity and quantity. Typically, we can deliver even complex and large orders in under eight weeks. Contact us for specific lead times. Gaskets can also be expedited upon request if a shorter lead time is required.
Yes, we offer gaskets made from materials like Viton and PTFE that are resistant to various chemicals. Let us know the specific chemicals involved, and we can recommend the best material.
Get In Touch
If you need a custom rubber gasket or help identifying the right one for you, let's chat. Our team of experts will get back to you quickly and ensure you get a solution fast.
