V1190-012
AS568-012 O-rings FKM, V1190-012 75 Durometer, Brown, FDA, NSF51, NSF61 FKM (Viton®)
Color: Brown
Enter a quantity to check price
Recommended Items
T1002-012
In Stock
B1001-012
In Stock
E1000-012
In Stock
S1184-012
In Stock
Description

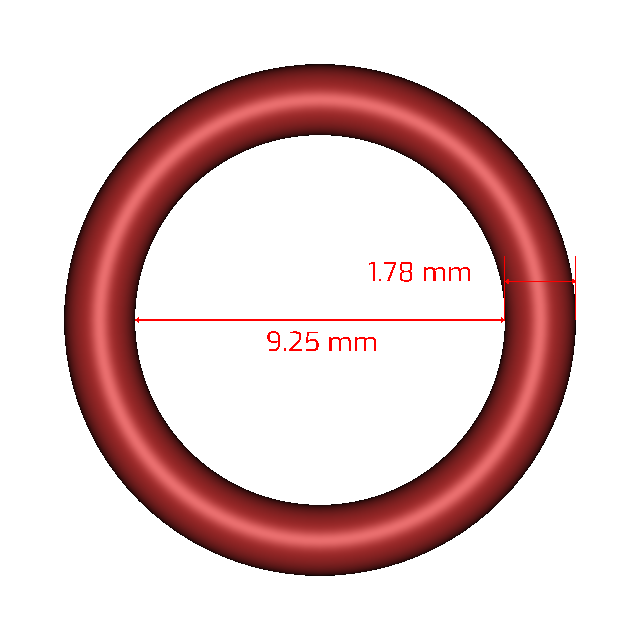

V1190-012 is a 75 durometer, brown, FKM (Viton®) o-ring. This product is a USA AS568-012 size and has a cross section of 1.78mm (0.070in) and an inside diameter of 9.25mm (0.364in). It is made from the compound V1190. See compound features belowCompound Attributes
- Compliant to FDA specification 21 CFR 177.2600 for use in food and beverage contact applications
- Certified to NSF 51 specification for use in food contact applications
- Certified to NSF 61 specification for use in drinking water applications
Tech Specs
| Size Code | 012 |
|---|---|
| Cross Section | 0.070 in (1.78 mm) |
| Inside Diameter | 0.364 in (9.25 mm) |
| Outside Diameter | 0.504 in (12.81 mm) |
| Part Number | V1190-012 |
| Compound | V1190 Material Datasheet  |
| Material Type | FKM (Viton®) |
| Sub Type | |
| High Temp | 400 °F (205 °C) |
| Low Temp | -15 °F (-30 °C) |
| Compliances | FDA NSF51 NSF61 |
| Hardness | 75 Shore A |
| Color | Brown |
