V1118-114
AS568-114 O-rings FKM, V1118-114 70 Durometer, White, 3A, ADI FREE, FDA, USP-VI, CLEAN ROOM FKM (Viton®)
Color: White
Available Quantity | Location |
|---|---|
370 |
Enter a quantity to check price
Recommended Items
E1055-114
In Stock
S1006-114
In Stock
L1000-114
In Stock
B1115-114
In Stock
Description

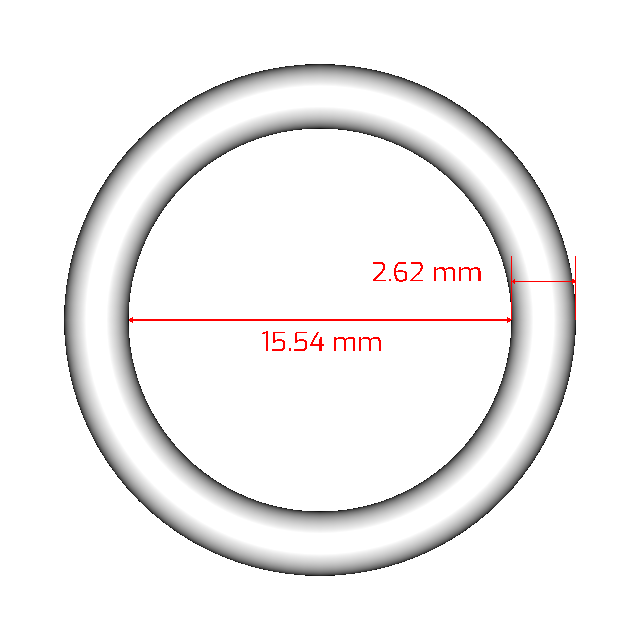

V1118-114 is a 70 durometer, white, FKM (Viton®) o-ring. This product is a USA AS568-114 size and has a cross section of 2.62mm (0.103in) and an inside diameter of 15.54mm (0.612in). It is made from the compound V1118. See compound features belowCompound Attributes
- Certified by 3-A Sanitary Standards
- Raw materials used in production contain no Animal Derived Ingredients (ADI)
- Compliant to FDA specification 21 CFR 177.2600 for use in food and beverage contact applications
- Tested and certified to USP Class VI specification for use in medical applications
- Manufactured and packaged in a controlled Clean Room environment
Tech Specs
| Size Code | 114 |
|---|---|
| Cross Section | 0.103 in (2.62 mm) |
| Inside Diameter | 0.612 in (15.54 mm) |
| Outside Diameter | 0.818 in (20.78 mm) |
| Part Number | V1118-114 |
| Compound | V1118 Material Datasheet  |
| Material Type | FKM (Viton®) |
| Sub Type | |
| High Temp | 400 °F (205 °C) |
| Low Temp | -15 °F (-30 °C) |
| Compliances | 3A ADI FREE FDA USP-VI CLEAN ROOM |
| Hardness | 70 Shore A |
| Color | White |
