V1090-908
AS568-908 O-rings FKM, V1090-908 GLT Low Temp. Type, 90 Durometer, Black, FKM (Viton®)
Color: Black
Enter a quantity to check price
Recommended Items
Z1400-908
In Stock
Z1352-908
In Stock
S1000-908
In Stock
E1000-908
In Stock
Description

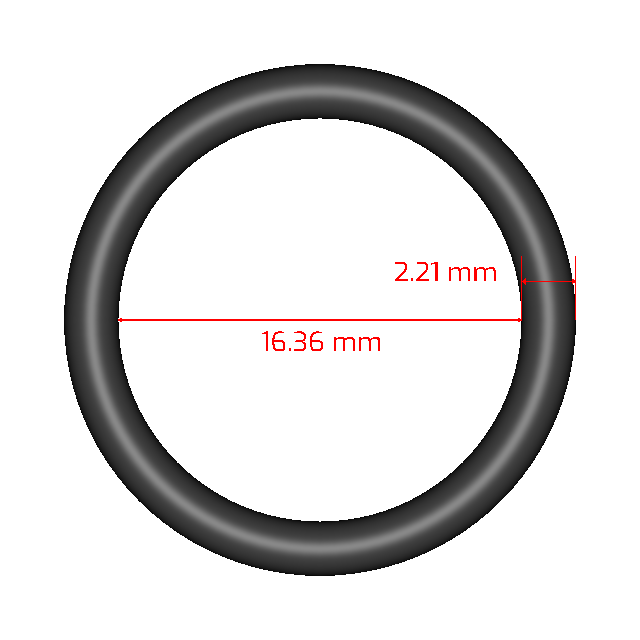

V1090-908 is a 90 durometer, black, FKM (Viton®) o-ring. This product is a USA AS568-908 size and has a cross section of 2.21mm (0.087in) and an inside diameter of 16.36mm (0.644in). It is made from the compound V1090. See compound features belowCompound Attributes
- Improved low temperature performance.
- Resistant to explosive decompression
- Resistant to lower temperatures
- For higher pressure applications
Tech Specs
| Size Code | 908 |
|---|---|
| Cross Section | 0.087 in (2.21 mm) |
| Inside Diameter | 0.644 in (16.36 mm) |
| Outside Diameter | 0.818 in (20.78 mm) |
| Part Number | V1090-908 |
| Compound | V1090 Material Datasheet  |
| Material Type | FKM (Viton®) |
| Sub Type | GLT Low Temp. Type |
| High Temp | 400 °F (205 °C) |
| Low Temp | -40 °F (-40 °C) |
| Hardness | 90 Shore A |
| Color | Black |
