Description

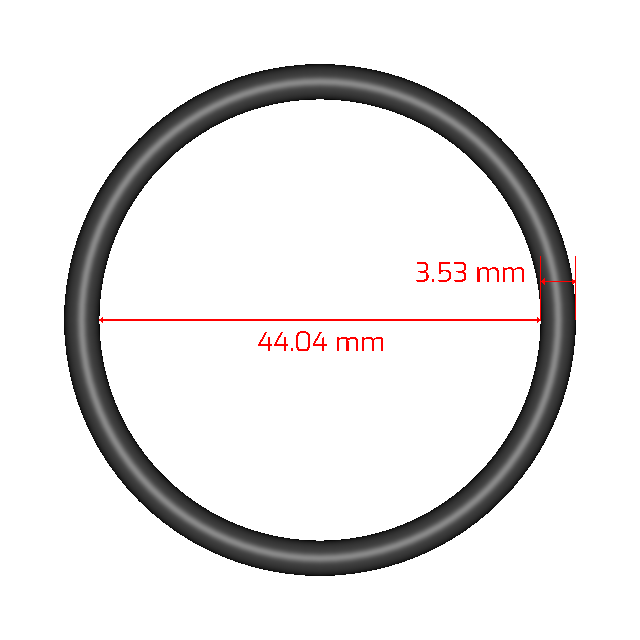

V1090-224 is a 90 durometer, black, FKM (Viton®) o-ring. This product is a USA AS568-224 size and has a cross section of 3.53mm (0.139in) and an inside diameter of 44.04mm (1.734in). It is made from the compound V1090. See compound features belowCompound Attributes
- Improved low temperature performance.
- Resistant to explosive decompression
- Resistant to lower temperatures
- For higher pressure applications
Tech Specs
| Size Code | 224 |
|---|---|
| Cross Section | 0.139 in (3.53 mm) |
| Inside Diameter | 1.734 in (44.04 mm) |
| Outside Diameter | 2.012 in (51.10 mm) |
| Part Number | V1090-224 |
| Compound | V1090 Material Datasheet  |
| Material Type | FKM (Viton®) |
| Sub Type | GLT Low Temp. Type |
| High Temp | 400 °F (205 °C) |
| Low Temp | -40 °F (-40 °C) |
| Hardness | 90 Shore A |
| Color | Black |
