V1088-2X85
Metric O-rings FKM, V1088-2X85 F Type, 75 Durometer, Black, FKM (Viton®)
Color: Black
Enter a quantity to check price
Recommended Items
Description

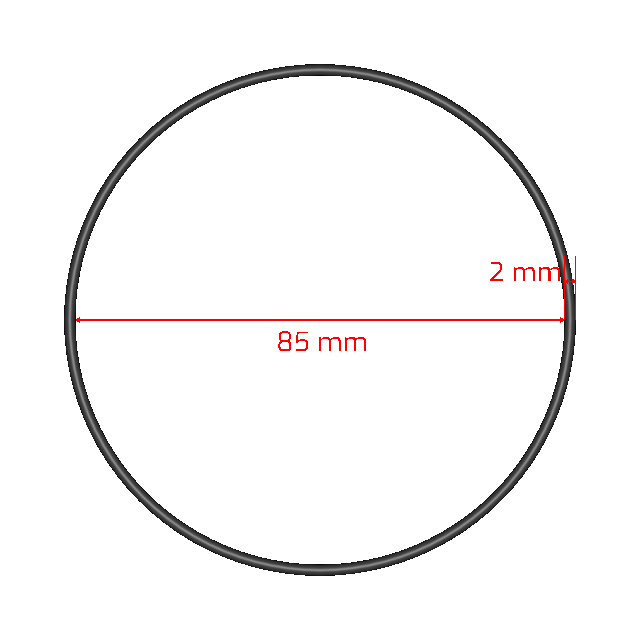

V1088-2X85 is a 75 durometer, black, FKM (Viton®) o-ring. This product Is a metric size has a cross section of 2.00mm (0.079in) and an inside diameter of 85.00mm (3.346in). It is made from the compound V1088. See compound features belowCompound Attributes
- Improved chemical and fuel resistance.
Tech Specs
| Size Code | 2X85 |
|---|---|
| Cross Section | 0.079 in (2.00 mm) |
| Inside Diameter | 3.346 in (85.00 mm) |
| Outside Diameter | 3.504 in (89.00 mm) |
| Part Number | V1088-2X85 |
| Compound | V1088 Material Datasheet  |
| Material Type | FKM (Viton®) |
| Sub Type | F Type |
| High Temp | 400 °F (205 °C) |
| Low Temp | -15 °F (-30 °C) |
| Hardness | 75 Shore A |
| Color | Black |
