V1020-5X25
JIS B 2401 GM025 O-rings FKM, V1020-5X25 ETP Type (Viton® Extreme™), 75 Durometer, Black, FKM (Viton®)
Color: Black
Enter a quantity to check price
Recommended Items
Description

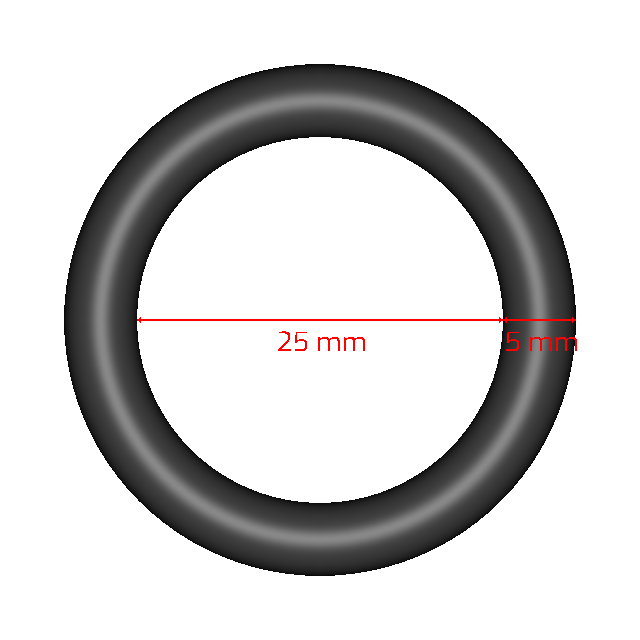

V1020-5X25 is a 75 durometer, black, FKM (Viton®) o-ring. This product is a Japanese JIS B 2401 GM025 size and has a cross section of 5.00mm (0.197in) and an inside diameter of 25.00mm (0.984in). It is made from the compound V1020. See compound features belowCompound Attributes
- Greatly improved chemical resistance for use in harsh environments.
Tech Specs
| Size Code | 5X25 |
|---|---|
| Cross Section | 0.197 in (5.00 mm) |
| Inside Diameter | 0.984 in (25.00 mm) |
| Outside Diameter | 1.378 in (35.00 mm) |
| Part Number | V1020-5X25 |
| Compound | V1020 Material Datasheet  |
| Material Type | FKM (Viton®) |
| Sub Type | ETP Type (Viton® Extreme™) |
| High Temp | 400 °F (205 °C) |
| Low Temp | -15 °F (-30 °C) |
| Hardness | 75 Shore A |
| Color | Black |
