V1004-236
AS568-236 O-rings FKM, V1004-236 90 Durometer, Black, QPL FKM (Viton®)
Color: Black
Enter a quantity to check price
Recommended Items
Z1400-236
In Stock
Z1028-236
In Stock
N1000-236
In Stock
Z1352-236
In Stock
Description

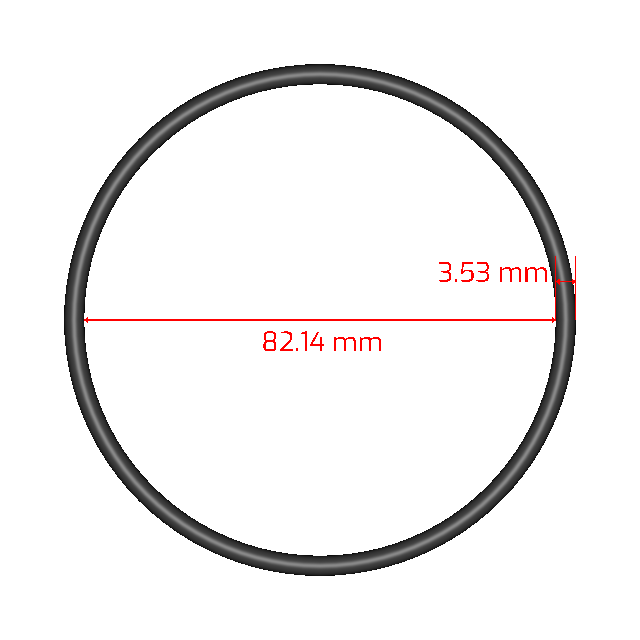

V1004-236 is a 90 durometer, black, FKM (Viton®) o-ring. This product is a USA AS568-236 size and has a cross section of 3.53mm (0.139in) and an inside diameter of 82.14mm (3.234in). It is made from the compound V1004. See compound features belowCompound Attributes
- Listed on the Qualified Products List (QPL)
- For higher pressure applications
Tech Specs
| Size Code | 236 |
|---|---|
| Cross Section | 0.139 in (3.53 mm) |
| Inside Diameter | 3.234 in (82.14 mm) |
| Outside Diameter | 3.512 in (89.20 mm) |
| Part Number | V1004-236 |
| Compound | V1004 Material Datasheet  |
| Material Type | FKM (Viton®) |
| Sub Type | |
| High Temp | 400 °F (205 °C) |
| Low Temp | -15 °F (-30 °C) |
| Compliances | QPL |
| Hardness | 90 Shore A |
| Color | Black |
