N1006-5X10
JIS B 2401 GM010 O-rings Neoprene®, N1006-5X10 50 Durometer, Black, Chloroprene (Neoprene®)
Color: Black
Available Quantity | Location |
|---|---|
10,000 | Ships within 1 business day |
Enter a quantity to check price
Recommended Items
V1000-5X10
In Stock
Description

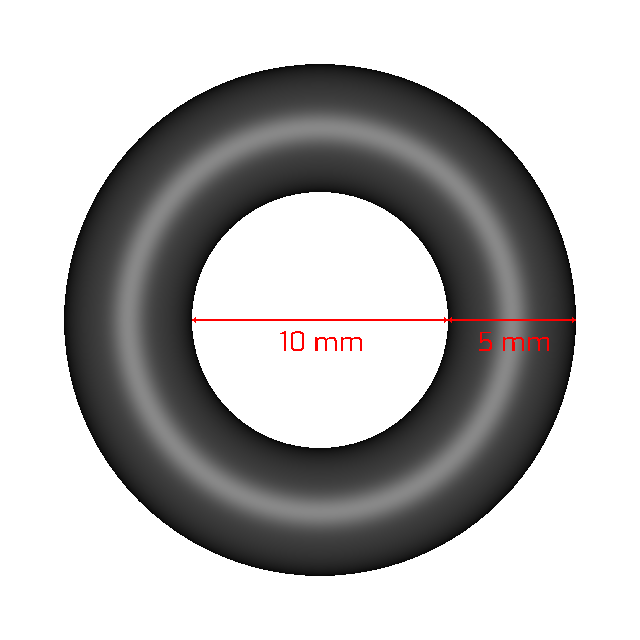

N1006-5X10 is a 50 durometer, black, Chloroprene (Neoprene®) o-ring. This product is a Japanese JIS B 2401 GM010 size and has a cross section of 5.00mm (0.197in) and an inside diameter of 10.00mm (0.394in). It is made from the compound N1006. See compound features belowCompound Attributes
- Low durometer material
Tech Specs
| Size Code | 5X10 |
|---|---|
| Cross Section | 0.197 in (5.00 mm) |
| Inside Diameter | 0.394 in (10.00 mm) |
| Outside Diameter | 0.787 in (20.00 mm) |
| Part Number | N1006-5X10 |
| Compound | N1006 Material Datasheet  |
| Material Type | Chloroprene (Neoprene®) |
| Sub Type | |
| High Temp | 250 °F (125 °C) |
| Low Temp | -40 °F (-40 °C) |
| Hardness | 50 Shore A |
| Color | Black |
