M1001-022
AS568-022 O-rings Buna-N, M1001-022 75 Durometer, Black, QPL Buna-N (NBR, Nitrile, Buna)
Color: Black
Enter a quantity to check price
Recommended Items
V1208-022
In Stock
V1000-022
In Stock
V1148-022
In Stock
V1007-022
In Stock
Description

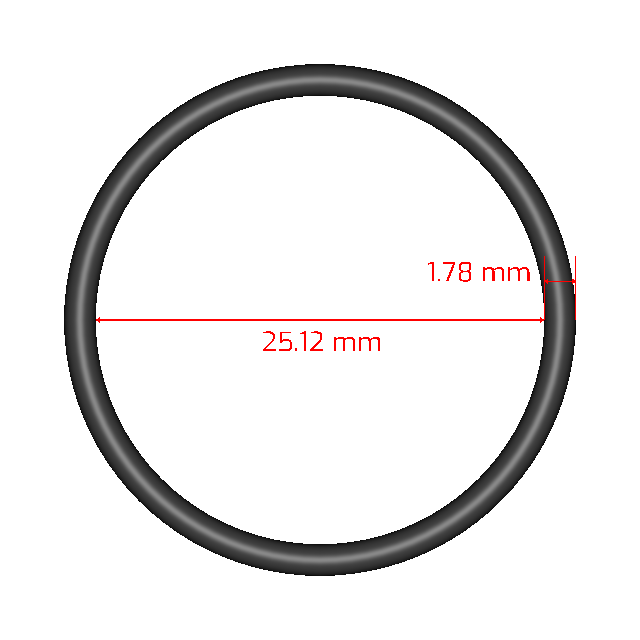

M1001-022 is a 75 durometer, black, Buna-N (NBR, Nitrile, Buna) o-ring. This product is a USA AS568-022 size and has a cross section of 1.78mm (0.070in) and an inside diameter of 25.12mm (0.989in). It is made from the compound M1001. See compound features belowCompound Attributes
- Listed on the Qualified Products List (QPL)
Tech Specs
| Size Code | 022 |
|---|---|
| Cross Section | 0.070 in (1.78 mm) |
| Inside Diameter | 0.989 in (25.12 mm) |
| Outside Diameter | 1.129 in (28.68 mm) |
| Part Number | M1001-022 |
| Compound | M1001 Material Datasheet  |
| Material Type | Buna-N (NBR, Nitrile, Buna) |
| Sub Type | |
| High Temp | 275 °F (135 °C) |
| Low Temp | -65 °F (-55 °C) |
| Compliances | QPL |
| Hardness | 75 Shore A |
| Color | Black |
