V1184-5X145
JIS B 2401 GM145 O-rings FKM, V1184-5X145 GLT Low Temp. Type, 70 Durometer, Black, FKM (Viton®)
Color: Black
Enter a quantity to check price
Recommended Items
Description

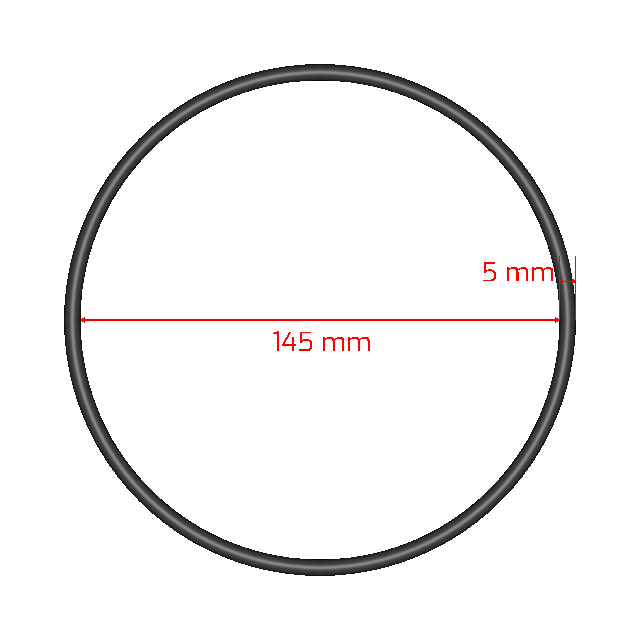

V1184-5X145 is a 70 durometer, black, FKM (Viton®) o-ring. This product is a Japanese JIS B 2401 GM145 size and has a cross section of 5.00mm (0.197in) and an inside diameter of 145.00mm (5.709in). It is made from the compound V1184. See compound features belowCompound Attributes
- Improved low temperature performance.
Tech Specs
| Size Code | 5X145 |
|---|---|
| Cross Section | 0.197 in (5.00 mm) |
| Inside Diameter | 5.709 in (145.00 mm) |
| Outside Diameter | 6.102 in (155.00 mm) |
| Part Number | V1184-5X145 |
| Compound | V1184 Material Datasheet  |
| Material Type | FKM (Viton®) |
| Sub Type | GLT Low Temp. Type |
| High Temp | 400 °F (205 °C) |
| Low Temp | -40 °F (-40 °C) |
| Hardness | 70 Shore A |
| Color | Black |
