V1090-5X200
JIS B 2401 GM200 O-rings FKM, V1090-5X200 GLT Low Temp. Type, 90 Durometer, Black, FKM (Viton®)
Color: Black
Enter a quantity to check price
Recommended Items
Description

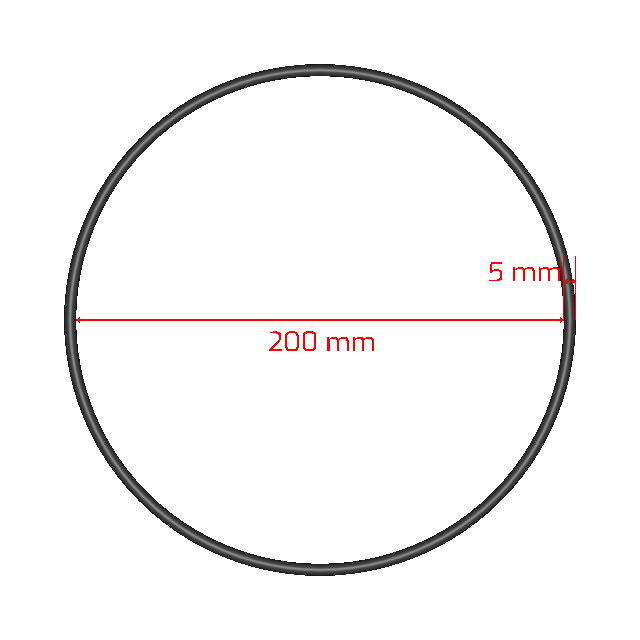

V1090-5X200 is a 90 durometer, black, FKM (Viton®) o-ring. This product is a Japanese JIS B 2401 GM200 size and has a cross section of 5.00mm (0.197in) and an inside diameter of 200.00mm (7.874in). It is made from the compound V1090. See compound features belowCompound Attributes
- Improved low temperature performance.
- Resistant to explosive decompression
- Resistant to lower temperatures
- For higher pressure applications
Tech Specs
| Size Code | 5X200 |
|---|---|
| Cross Section | 0.197 in (5.00 mm) |
| Inside Diameter | 7.874 in (200.00 mm) |
| Outside Diameter | 8.268 in (210.00 mm) |
| Part Number | V1090-5X200 |
| Compound | V1090 Material Datasheet  |
| Material Type | FKM (Viton®) |
| Sub Type | GLT Low Temp. Type |
| High Temp | 400 °F (205 °C) |
| Low Temp | -40 °F (-40 °C) |
| Hardness | 90 Shore A |
| Color | Black |
