V1086-5X240
JIS B 2401 GM240 O-rings FKM, V1086-5X240 XLT Extreme Low Temp Type, 75 Durometer, Black, FKM (Viton®)
Color: Black
Enter a quantity to check price
Recommended Items
Description

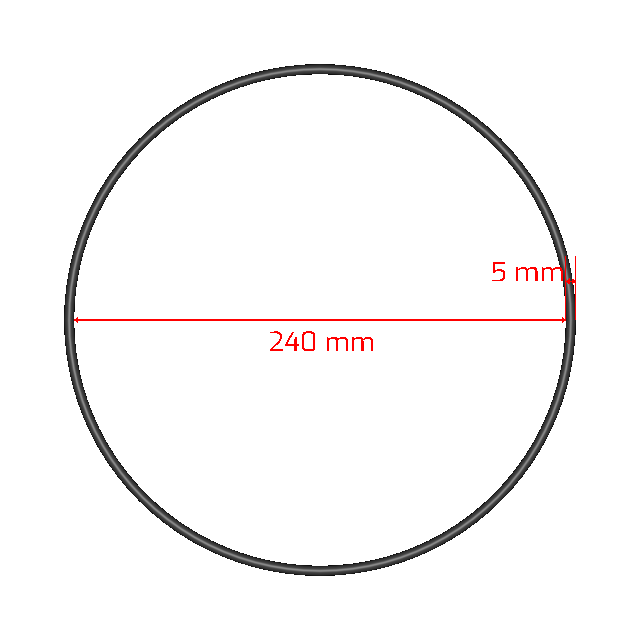

V1086-5X240 is a 75 durometer, black, FKM (Viton®) o-ring. This product is a Japanese JIS B 2401 GM240 size and has a cross section of 5.00mm (0.197in) and an inside diameter of 240.00mm (9.449in). It is made from the compound V1086. See compound features belowCompound Attributes
- Greatly improved low temperature performance for extreme conditions.
Tech Specs
| Size Code | 5X240 |
|---|---|
| Cross Section | 0.197 in (5.00 mm) |
| Inside Diameter | 9.449 in (240.00 mm) |
| Outside Diameter | 9.843 in (250.00 mm) |
| Part Number | V1086-5X240 |
| Compound | V1086 Material Datasheet  |
| Material Type | FKM (Viton®) |
| Sub Type | XLT Extreme Low Temp Type |
| High Temp | 400 °F (205 °C) |
| Low Temp | -55 °F (-50 °C) |
| Hardness | 75 Shore A |
| Color | Black |
