V1052-5X30
JIS B 2401 GM030 O-rings FKM, V1052-5X30 90 Durometer, Black, FKM (Viton®)
Color: Black
Enter a quantity to check price
Recommended Items
Description

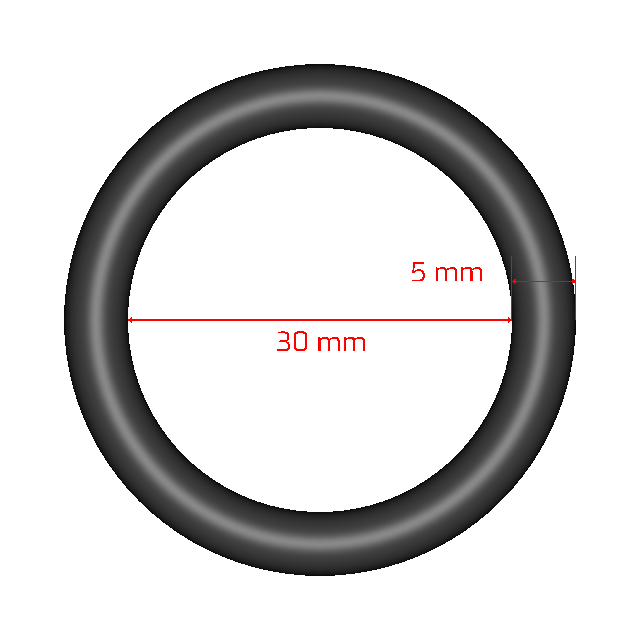

V1052-5X30 is a 90 durometer, black, FKM (Viton®) o-ring. This product is a Japanese JIS B 2401 GM030 size and has a cross section of 5.00mm (0.197in) and an inside diameter of 30.00mm (1.181in). It is made from the compound V1052. See compound features belowCompound Attributes
- Resistant to explosive decompression
- For higher pressure applications
Tech Specs
| Size Code | 5X30 |
|---|---|
| Cross Section | 0.197 in (5.00 mm) |
| Inside Diameter | 1.181 in (30.00 mm) |
| Outside Diameter | 1.575 in (40.00 mm) |
| Part Number | V1052-5X30 |
| Compound | V1052 Material Datasheet  |
| Material Type | FKM (Viton®) |
| Sub Type | |
| High Temp | 400 °F (205 °C) |
| Low Temp | -20 °F (-30 °C) |
| Hardness | 90 Shore A |
| Color | Black |
