V1038-5X220
JIS B 2401 GM220 O-rings FKM, V1038-5X220 GLT Low Temp. Type, 75 Durometer, Black, FKM (Viton®)
Color: Black
Enter a quantity to check price
Recommended Items
Description

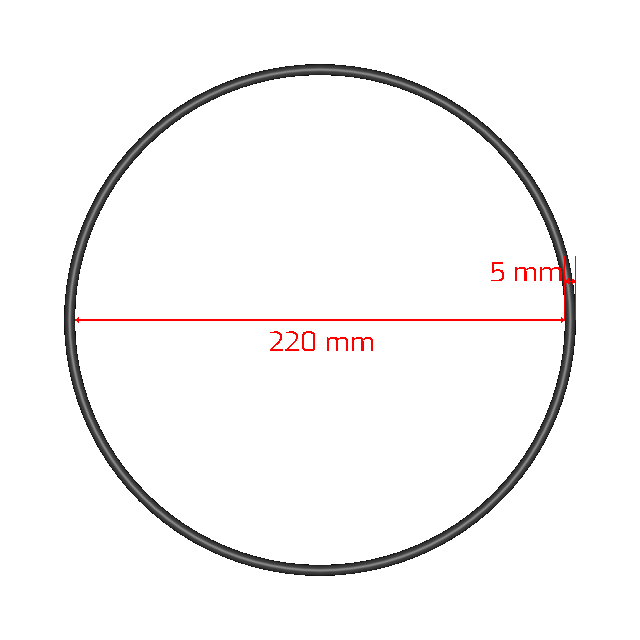

V1038-5X220 is a 75 durometer, black, FKM (Viton®) o-ring. This product is a Japanese JIS B 2401 GM220 size and has a cross section of 5.00mm (0.197in) and an inside diameter of 220.00mm (8.661in). It is made from the compound V1038. See compound features belowCompound Attributes
- Improved low temperature performance.
Tech Specs
| Size Code | 5X220 |
|---|---|
| Cross Section | 0.197 in (5.00 mm) |
| Inside Diameter | 8.661 in (220.00 mm) |
| Outside Diameter | 9.055 in (230.00 mm) |
| Part Number | V1038-5X220 |
| Compound | V1038 Material Datasheet  |
| Material Type | FKM (Viton®) |
| Sub Type | GLT Low Temp. Type |
| High Temp | 400 °F (205 °C) |
| Low Temp | -40 °F (-40 °C) |
| Hardness | 75 Shore A |
| Color | Black |
