V1020-4X96
Metric O-rings FKM, V1020-4X96 ETP Type (Viton® Extreme™), 75 Durometer, Black, FKM (Viton®)
Color: Black
Enter a quantity to check price
Recommended Items
Description

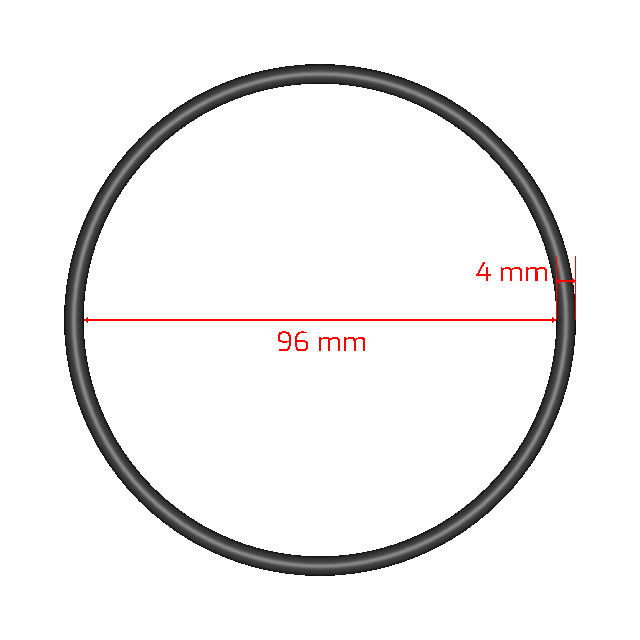

V1020-4X96 is a 75 durometer, black, FKM (Viton®) o-ring. This product Is a metric size has a cross section of 4.00mm (0.157in) and an inside diameter of 96.00mm (3.780in). It is made from the compound V1020. See compound features belowCompound Attributes
- Greatly improved chemical resistance for use in harsh environments.
Tech Specs
| Size Code | 4X96 |
|---|---|
| Cross Section | 0.157 in (4.00 mm) |
| Inside Diameter | 3.780 in (96.00 mm) |
| Outside Diameter | 4.094 in (104.00 mm) |
| Part Number | V1020-4X96 |
| Compound | V1020 Material Datasheet  |
| Material Type | FKM (Viton®) |
| Sub Type | ETP Type (Viton® Extreme™) |
| High Temp | 400 °F (205 °C) |
| Low Temp | -15 °F (-30 °C) |
| Hardness | 75 Shore A |
| Color | Black |
