V1003-266
AS568-266 O-rings FKM, V1003-266 75 Durometer, Brown, FKM (Viton®)
Color: Brown
Available Quantity | Location |
|---|---|
564 | Ships within 1 business day |
509 |
Enter a quantity to check price
Recommended Items
S1000-266
In Stock
B1001-266
In Stock
Z1352-266
In Stock
Z1400-266
In Stock
Description

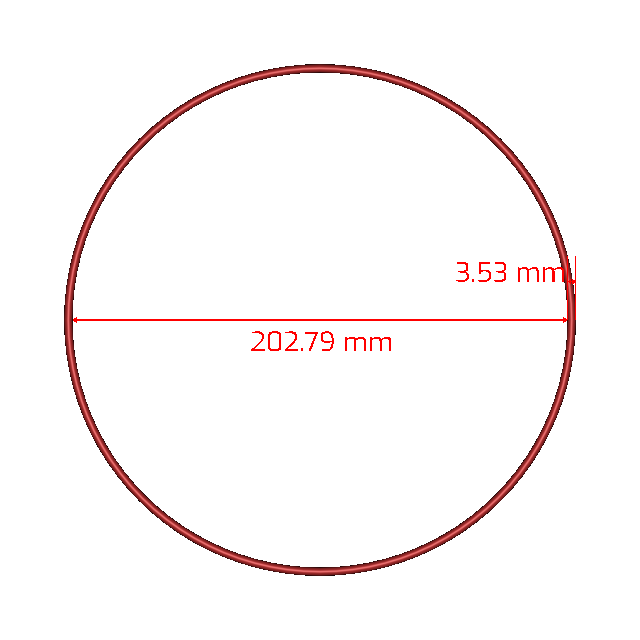

V1003-266 is a 75 durometer, brown, FKM (Viton®) o-ring. This product is a USA AS568-266 size and has a cross section of 3.53mm (0.139in) and an inside diameter of 202.79mm (7.984in). It is made from the compound V1003. See compound features belowCompound Attributes
- General purpose material
Tech Specs
| Size Code | 266 |
|---|---|
| Cross Section | 0.139 in (3.53 mm) |
| Inside Diameter | 7.984 in (202.79 mm) |
| Outside Diameter | 8.262 in (209.85 mm) |
| Part Number | V1003-266 |
| Compound | V1003 Material Datasheet  |
| Material Type | FKM (Viton®) |
| Sub Type | |
| High Temp | 400 °F (205 °C) |
| Low Temp | -15 °F (-30 °C) |
| Hardness | 75 Shore A |
| Color | Brown |
