V1003-001
AS568-001 O-rings FKM, V1003-001 75 Durometer, Brown, FKM (Viton®)
Color: Brown
Available Quantity | Location |
|---|---|
484 | Ships within 1 business day |
18,044 |
Enter a quantity to check price
Recommended Items
Z1400-001
In Stock
Z1352-001
In Stock
E1055-001
In Stock
E1000-001
In Stock
Description

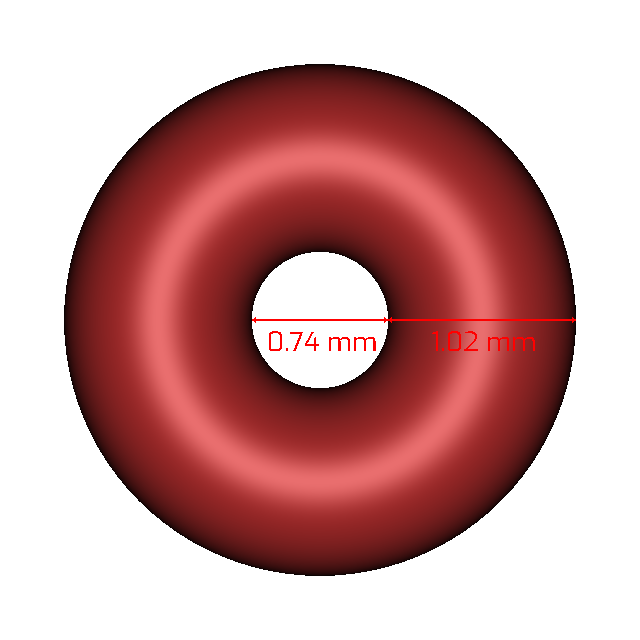

V1003-001 is a 75 durometer, brown, FKM (Viton®) o-ring. This product is a USA AS568-001 size and has a cross section of 1.02mm (0.040in) and an inside diameter of 0.74mm (0.029in). It is made from the compound V1003. See compound features belowCompound Attributes
- General purpose material
Tech Specs
| Size Code | 001 |
|---|---|
| Cross Section | 0.040 in (1.02 mm) |
| Inside Diameter | 0.029 in (0.74 mm) |
| Outside Diameter | 0.109 in (2.78 mm) |
| Part Number | V1003-001 |
| Compound | V1003 Material Datasheet  |
| Material Type | FKM (Viton®) |
| Sub Type | |
| High Temp | 400 °F (205 °C) |
| Low Temp | -15 °F (-30 °C) |
| Hardness | 75 Shore A |
| Color | Brown |
