N1002-310

AS568-310 O-rings Neoprene®, N1002-310 70 Durometer, Black, Chloroprene (Neoprene®)

Color: Black
Enter a quantity to check price


Recommended Items

In Stock
USA 310 O-ring Buna-N 70A Durometer Black
Higher Temperature
In Stock
USA 310 O-ring Buna-N 90A Durometer Black
Higher Temperature
In Stock
USA 310 O-ring Markez® Z1028 FFKM 75A Durometer Black
Higher Temperature
Specialty Resistances
In Stock
USA 310 O-ring Silicone 70A Durometer Orange FDA
Higher & Lower Temps
Industry Compliances

Description

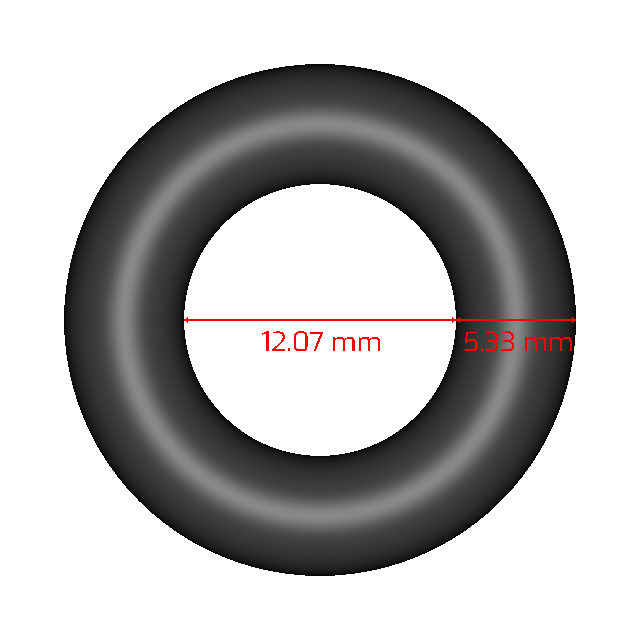

N1002-310 is a 70 durometer, black, Chloroprene (Neoprene®) o-ring. This product is a USA AS568-310 size and has a cross section of 5.33mm (0.210in) and an inside diameter of 12.07mm (0.475in). It is made from the compound N1002. See compound features below

Compound Attributes

  • Resistant to freons

Tech Specs

Size Code310
Cross Section 0.210 in (5.33 mm)
Inside Diameter 0.475 in (12.07 mm)
Outside Diameter 0.895 in (22.73 mm)
Part NumberN1002-310
Compound N1002
Material Datasheet View Datasheet
Material TypeChloroprene (Neoprene®)
Sub Type
High Temp 215 °F (100 °C)
Low Temp -40 °F (-40 °C)
Hardness 70 Shore A
Color Black

Accessories

In Stock
$37.2 / ea
