E1142-1X8
JIS B 2401 SS080 O-rings EPDM, E1142-1X8 70 Durometer, White, ADI FREE, FDA, USP-VI EPDM (EP, EPR, Ethylene-Propylene Rubber)
Color: White
Enter a quantity to check price
Recommended Items
Description

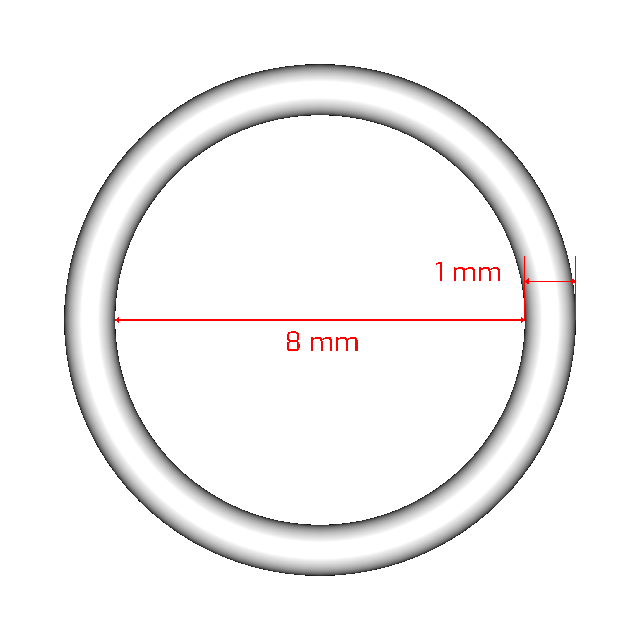

E1142-1X8 is a 70 durometer, white, EPDM (EP, EPR, Ethylene-Propylene Rubber) o-ring. This product is a Japanese JIS B 2401 SS080 size and has a cross section of 1.00mm (0.039in) and an inside diameter of 8.00mm (0.315in). It is made from the compound E1142. See compound features belowCompound Attributes
- Raw materials used in production contain no Animal Derived Ingredients (ADI)
- Compliant to FDA specification 21 CFR 177.2600 for use in food and beverage contact applications
- Tested and certified to USP Class VI specification for use in medical applications
Tech Specs
| Size Code | 1X8 |
|---|---|
| Cross Section | 0.039 in (1.00 mm) |
| Inside Diameter | 0.315 in (8.00 mm) |
| Outside Diameter | 0.394 in (10.00 mm) |
| Part Number | E1142-1X8 |
| Compound | E1142 |
| Material Type | EPDM (EP, EPR, Ethylene-Propylene Rubber) |
| Sub Type | |
| High Temp | 300 °F (150 °C) |
| Low Temp | -65 °F (-55 °C) |
| Compliances | ADI FREE FDA USP-VI |
| Hardness | 70 Shore A |
| Color | White |
