B1001-5X270

JIS B 2401 GM270 O-rings Buna-N, B1001-5X270 90 Durometer, Black, Buna-N (NBR, Nitrile, Buna)

Color: Black
Enter a quantity to check price


Recommended Items

Description

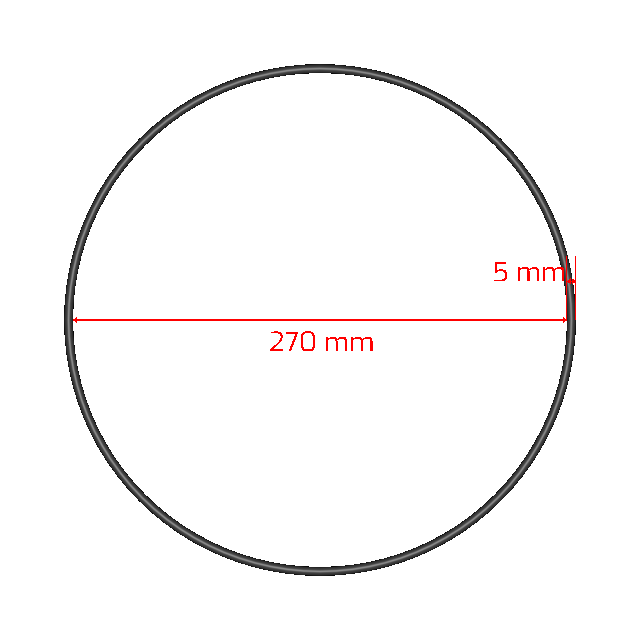

B1001-5X270 is a 90 durometer, black, Buna-N (NBR, Nitrile, Buna) o-ring. This product is a Japanese JIS B 2401 GM270 size and has a cross section of 5.00mm (0.197in) and an inside diameter of 270.00mm (10.630in). It is made from the compound B1001. See compound features below

Compound Attributes

  • For higher pressure applications

Tech Specs

Size Code5X270
Cross Section 0.197 in (5.00 mm)
Inside Diameter 10.630 in (270.00 mm)
Outside Diameter 11.024 in (280.00 mm)
Part NumberB1001-5X270
Compound B1001
Material Datasheet View Datasheet
Material TypeBuna-N (NBR, Nitrile, Buna)
Sub Type
High Temp 250 °F (125 °C)
Low Temp -30 °F (-35 °C)
Hardness 90 Shore A
Color Black
