O-rings are one of the smallest parts in an air conditioning system, but they are also one of the most important. A failed o-ring can lead to refrigerant leaks, compressor damage, and costly repairs.
There are some key factors that will ensure that AC o-rings work well in applications like HVAC or refrigeration. These include considerations like materials, temperature, pressure, and lubrication.
Why Air Conditioning Systems Need Specialized O-Rings
Not all o-rings are built for the demands of AC systems. Many o-rings fail in air conditioner systems because they’re not rated for the conditions involved.
AC systems run hot and cold. A good seal material must stay flexible at -40°F and remain intact up to 300°F. That’s one reason HNBR is widely used. It performs across that entire range.
Pressure also cycles frequently. AC o-rings must resist extrusion and deformation during startup and shutdown. A mismatch in durometer or sizing can cause leaks.
Chemical compatibility also matters. Common refrigerants like R134a and R1234yf can degrade certain elastomers. Oils like PAG and POE add to that risk. HNBR resists both refrigerants and oils better than standard NBR.
When an o-ring fails in an air conditioning system, the impact isn’t just a minor leak. It can mean system downtime, environmental exposure, or a full system overhaul.
What to Consider for AC Compressor O-Rings
O-rings used in AC compressors must be compatible with refrigerant and oil, withstand temperatures from -40°F to 300°F, resist extrusion, and be the right size for the application.
The compressor is the most demanding part of an AC system. It’s where refrigerant is pressurized, temperatures spike, and movement creates mechanical wear. Because of this, the o-rings used in compressors must meet more rigorous performance standards than those used elsewhere in the system. There are a few key considerations: material compatibility, thermal range, pressure resistance, dynamic movement, and sizing and fit.
Material Compatibility
The compressor operates in direct contact with refrigerant and oil. If the o-ring material isn’t compatible, it can swell, crack, or degrade over time.
- HNBR is commonly used in automotive compressors because it offers excellent resistance to R134a and R1234yf refrigerants, as well as synthetic compressor oils like PAG and POE.
- NBR (Buna-N) is less expensive but more prone to chemical breakdown in these environments.
Material breakdown leads to loss of sealing force, permanent deformation, and eventual leaks.
Thermal Range
Compressors heat up quickly during operation and cool rapidly during shutdown. O-rings must stay elastic through these cycles.
- HNBR handles sustained heat up to 300°F and remains flexible at temperatures as low as -30°F.
- Temperature spikes occur, especially near the discharge port, where refrigerant exits under pressure and friction generates localized heat.
Thermal cycling also increases the risk of compression set (when an o-ring takes a permanent flattened shape), so thermal stability is key to longevity.
Pressure Resistance
Compressor discharge pressures can exceed 250 psi under load. In systems with variable displacement compressors, pressure fluctuations are constant.
- O-rings must resist extrusion into the clearance gap between sealing surfaces.
- Higher durometer ratings (typically 70 to 90 Shore A) offer better dimensional stability and reduce the risk of the seal material deforming under pressure.
- In some designs, a backup ring may be used to support the o-ring under high pressure.
Dynamic Movement and Vibration
While many compressor seals are static, some connections may experience slight movement or vibration, especially in mobile or automotive applications.
- Wear resistance becomes important in these cases. HNBR outperforms NBR and EPDM in terms of abrasion resistance.
- In some designs, rotary shaft seals may use lip seals instead of o-rings, but the principle remains: the material must endure motion and maintain sealing force over time.

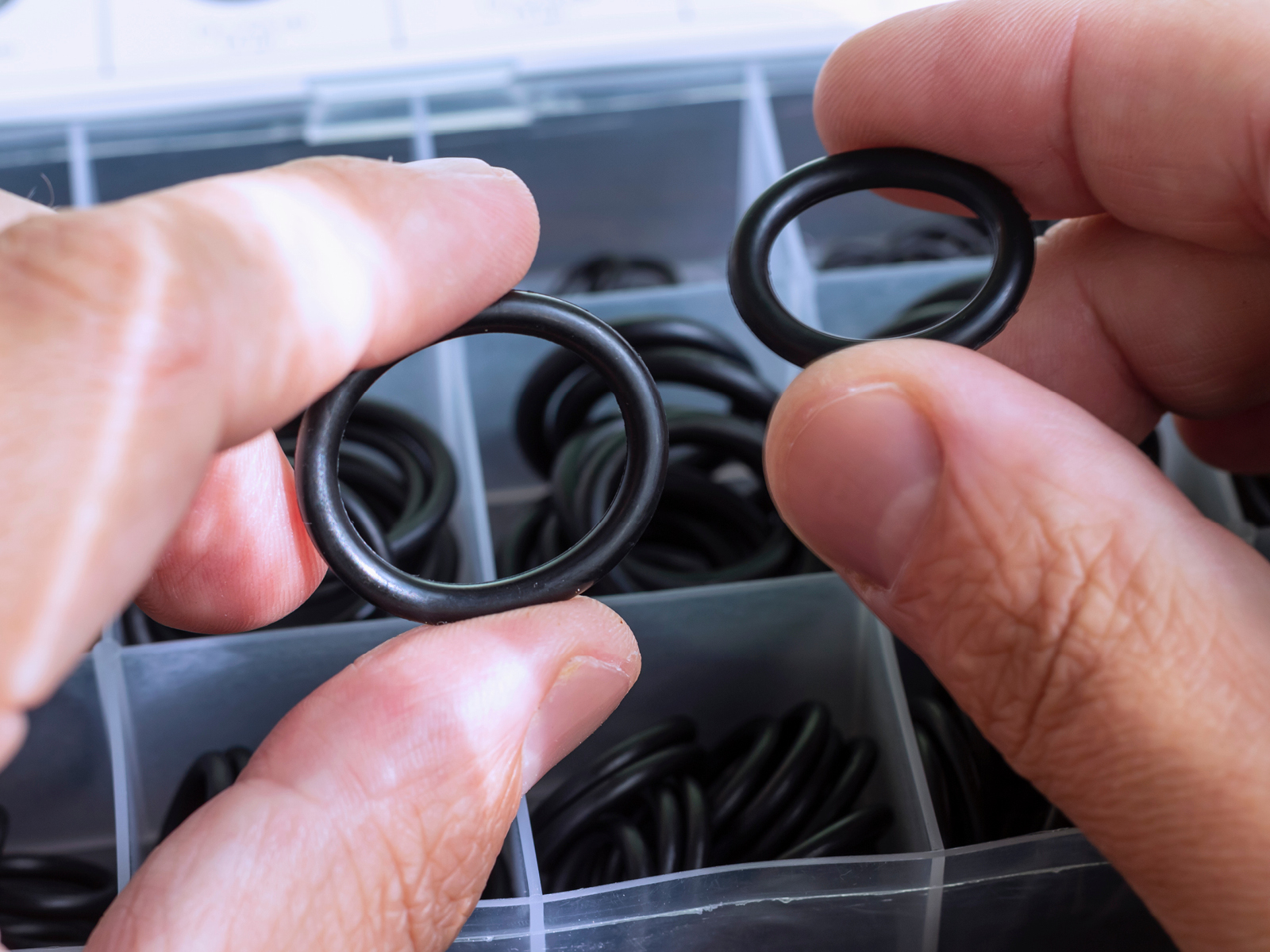

Sizing and Fit
Even the right material won’t perform if the seal isn’t properly sized.
- A seal that’s too small may not provide sufficient compression, leading to leaks.
- A seal that’s too large may bunch, twist, or get pinched during installation.
- Most compressor manufacturers follow standard gland dimensions based on AS568 sizing, and many automotive o-ring kits include these sizes for convenience.
Proper sizing also accounts for groove geometry, surface finish, and assembly tolerance, all of which affect seal compression and lifespan.
Choosing the Right O-Ring Material for Air Conditioning Systems
Selecting the appropriate o-ring material is crucial for the reliability and efficiency of air conditioning (AC) systems. The material must withstand specific temperature ranges, pressures, and chemical exposures. There are a few common materials used in AC applications.
Hydrogenated Nitrile Butadiene Rubber (HNBR)
- Temperature Range: -30°F to 300°F
- Chemical Compatibility: Excellent resistance to R134a and R1234yf refrigerants, as well as synthetic compressor oils like PAG and POE.
- Applications: Automotive AC systems, HVAC units, and commercial refrigeration
- Advantages:
- Superior resistance to heat, oil, and oxidative aging.
- Enhanced mechanical properties compared to standard NBR.
- Suitable for dynamic applications due to improved abrasion resistance.
Ethylene Propylene Diene Monomer (EPDM)
- Temperature Range: -65°F to 300°F
- Chemical Compatibility: Resistant to water, steam, and certain refrigerants; not compatible with petroleum-based oils.
- Applications: Residential HVAC systems, especially those using glycol-based fluids.
- Advantages:
- Excellent resistance to weathering, ozone, and aging.
- Good performance in polar solvents and brake fluids.
- Suitable for applications requiring FDA compliance.
Fluorocarbon Rubber (FKM, e.g., Viton®)
- Temperature Range: -15°F to 437°F
- Chemical Compatibility: Broad resistance to oils, fuels, and a wide range of chemicals.
- Applications: High-performance AC systems, including those using CO₂ refrigerants.
- Advantages:
- Outstanding heat resistance.
- Low gas permeability.
- Excellent resistance to compression set and aging.
Chloroprene Rubber (Neoprene®)
- Temperature Range: -35°F to 250°F
- Chemical Compatibility: Moderate resistance to refrigerants and ozone; limited resistance to petroleum oils.
- Applications: Legacy AC systems and general-purpose sealing.
- Advantages:
- Good balance of properties for general sealing applications.
- Resistant to weathering and ozone.
- Cost-effective for non-critical applications.
O-Ring Material Compatibility Chart for AC Systems
| O-Ring Material | Refrigerant R134a | Refrigerant R1234yf | Refrigerant R744 (CO2) | PAG Oil | POE Oil | Mineral Oil | Typical Temp. Range (°F) | Marco Rubber Compounds (Examples) | Notes |
| HNBR | Excellent | Excellent | Good | Good | Good | Good | -40 to +325/+350 | R1000, R1005, R1008 | Widely used for R134a & R1234yf. Often green. Good all-around choice for automotive AC. |
| EPDM (Peroxide Cured) | Good | Good | Fair (Verify) | Good | Good | Poor | -65 to +300 | E1055, E1069 | Good with PAG/POE in R134a/R1234yf systems. Not for petroleum oils. CO2 compatibility needs specific compound verification. |
| FKM (Viton®) | Fair (Verify) | Fair (Verify) | Excellent | Good | Good | Excellent | -15 to +400/+437 | V1007, V1044, V1052 | Excellent for high temps & CO2. R134a/R1234yf use less common in OEM auto AC, verify specific compound. |
| Neoprene (CR) | Good | Good | Fair (Verify) | Fair | Fair | Good | -60 to +225 | N1000 | Historically used, less common in new designs vs. HNBR. Check modern formulations. |
| Nitrile (NBR) | Poor | Poor | Poor | Poor | Poor | Fair | -30 to +250 | B1000 | Generally not recommended for AC due to limited temp and chemical resistance. |
Best Practices for Lubricating AC O-Rings
Lubrication is a critical but often overlooked step in the installation of AC o-rings. Done correctly, lubricating o-rings used in AC systems extends the life of the seal, improves system performance, and reduces the risk of premature failure.
Why Lubrication Matters
Installing an o-ring without lubrication increases the risk of mechanical damage. The o-ring may twist, tear, or become pinched when being seated into its groove or compressed during assembly. These small deformations often go unnoticed until the system is pressurized and leaks occur.
Lubricating the o-ring offers several key benefits:
- Smoother installation: A light film of compatible lubricant reduces friction between the o-ring and surrounding components. This allows the seal to slide into place without binding or tearing.
- Seal integrity: Lubricants help fill in microscopic voids on the mating surfaces, supporting the o-ring in establishing a tight initial seal.
- Protection during startup: Before compressor oil circulates fully through the system, the lubricant provides early-phase lubrication to reduce wear.
- Extended seal life: Reducing friction and avoiding damage during installation helps maintain long-term sealing performance and slows the onset of compression set.
Choosing the Right Lubricant
Not all lubricants are suitable for AC systems. The lubricant must be chemically compatible with both the o-ring material and the refrigerant and oil used in the system. Incompatible lubricants can cause the o-ring to swell, degrade, or lose elasticity.
| O-Ring Material | Recommended Lubricant |
| HNBR | PAG oil or synthetic AC-compatible greases |
| EPDM | Silicone grease (must be compatible with refrigerant used) |
| FKM (Viton®) | POE oil or fluorinated lubricants |
| Neoprene® | Silicone-based lubricants or specific manufacturer-approved greases |
In most automotive applications using R134a or R1234yf refrigerants, PAG oil is both the system lubricant and the preferred o-ring lubricant. It provides compatibility and reduces risk of chemical reaction. For systems using POE oil (common in CO₂ or newer systems), the same oil may be used sparingly for lubrication, depending on the o-ring compound.
Application Tips
- Apply a thin, even layer, as too much lubricant can attract debris or interfere with compression.
- Avoid petroleum jelly or multi-purpose greases that are not rated for AC systems.
- In dynamic areas or where disassembly is expected, use only manufacturer-approved lubricants to ensure safe performance and material compatibility.
Finding the Right O-Ring for AC Applications
Marco Rubber & Plastics supplies AC o-rings engineered for refrigerant compatibility, thermal cycling, and pressure demands.
- Materials: Stocked in HNBR, FKM, and EPDM compounds for use with R134a, R1234yf, CO₂, PAG and POE oils.
- Sizes: Full AS568 range, plus custom-molded and large-diameter options.
- Performance: Durometer and formulation options to resist extrusion, swelling, and compression set under dynamic conditions.
- Kits: Automotive and HVAC service kits available with matched material and size selection.
For high-performance or non-standard applications, our team provides material-compatibility checks, tolerance guidance, and custom compound support, all with traceability and technical documentation upon request.
Need help specifying a seal? We’ll help you get it right the first time. Get in touch today.
