How to Lubricate O-Rings

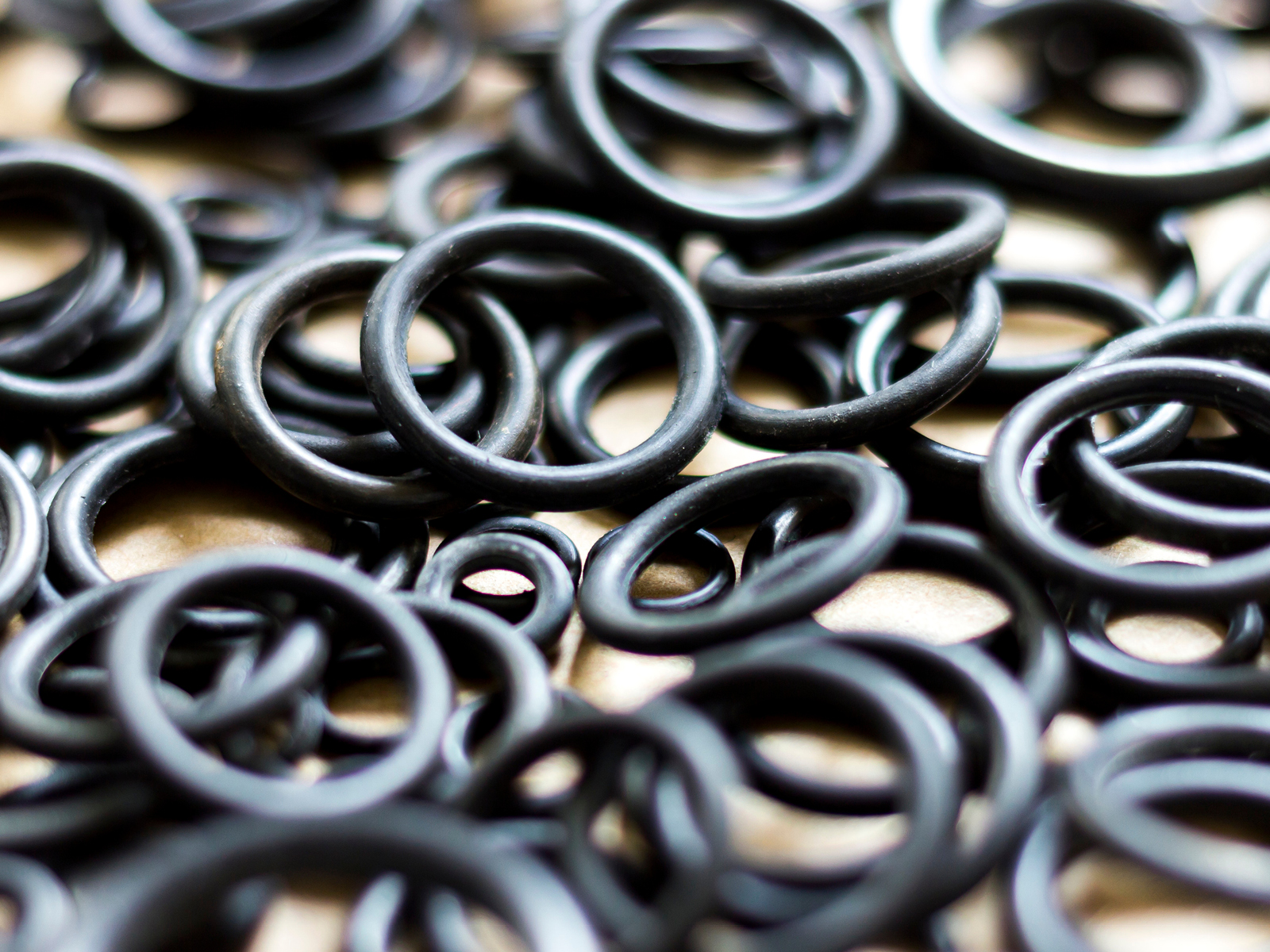

Marco o-rings inventory

In many systems, o-ring failure is a lubrication issue.

O-ring lubrication is central to seal performance, especially during installation and in dynamic systems. A compatible lubricant can prevent damage, reduce friction, and improve long-term sealing integrity. However, not all lubricants work with every elastomer. Choosing the wrong one can shorten seal life or lead to immediate failure.

Lubricant selection, application, and troubleshooting all directly affect seal performance and system reliability. Matching lubricant to material and use case helps reduce installation damage, prevent premature wear, and extend sealing life in both static and dynamic systems.

Selecting the Right O-Ring Lubricant

Lubricant choice for o-rings should be driven by material compatibility, application type, and system environment. Even a technically good lubricant can cause issues if mismatched with the elastomer or media.

Material compatibility

Lubricant and elastomer compatibility is a primary factor in seal reliability. If the lubricant reacts with the o-ring material, it can cause dimensional changes, loss of mechanical properties, or chemical breakdown. This often happens before the system is even in service.

Common failure modes include:

  • Swelling: Caused by the absorption of incompatible lubricants, leading to oversizing and extrusion risk.
  • Hardening or embrittlement: Resulting from chemical attack or drying agents in the lubricant.
  • Surface softening or cracking: Especially in high-temp or chemically active environments.

A few high-risk pairings:

  • Silicone grease on silicone (VMQ): Triggers aggressive swelling and breakdown of the seal’s network structure.
  • Petroleum-based lubricants on EPDM: Break down the polymer backbone, causing surface cracks and shrinkage.

Variations in formulation matter even within a compatible family. For critical applications, confirm with material datasheets or a dedicated chemical compatibility chart. When in doubt, select a lubricant that’s explicitly tested against the elastomer and the media in your system.

Operating-Temperature Range

Lubricants must maintain their physical and chemical properties across the full operating-temperature range of the application. A lubricant that performs well at ambient temperatures may become too viscous at low temperatures or degrade at high temperatures, compromising seal performance.

Key considerations include:

  • Low-Temperature Performance: At low temperatures, lubricants can thicken, increasing friction during assembly or startup. This can lead to improper seating of the o-ring or increased wear during initial operation.
  • High-Temperature Stability: Elevated temperatures can cause lubricants to thin excessively or oxidize, reducing their effectiveness and potentially leading to seal degradation.

It is essential to select a lubricant with a temperature range that matches or exceeds the application’s requirements. For instance, in high-temperature environments, lubricants formulated with synthetic or fluorinated bases may offer better thermal stability. Conversely, in low-temperature applications, lubricants designed to remain fluid at sub-zero temperatures are preferable.

Always consult the lubricant’s technical data sheet to ensure its temperature range aligns with the application’s operating conditions.

Application Type: Static vs. Dynamic

Lubrication requirements differ significantly between static and dynamic sealing applications.

Static Seals
In static o-ring applications, where the o-ring remains stationary between two components, lubrication primarily aids in installation. Applying a compatible lubricant reduces friction, helping to prevent twisting, tearing, or pinching during assembly. This is particularly important when dealing with tight tolerances or hardware with sharp edges. Additionally, lubrication can assist in achieving proper compression, ensuring an effective seal.

Our o-ring groove design guides can help avoid some of these hazards for new designs, but it may be difficult or impossible to modify existing hardware.

Dynamic Seals
Dynamic applications involve relative motion between the o-ring and mating surfaces, such as in reciprocating, rotary, or oscillating systems. These conditions subject the o-ring to continuous friction and wear. Lubrication in dynamic seals serves multiple purposes:

  • Reducing friction to minimize heat generation and material degradation.
  • Providing a film that can accommodate surface irregularities, enhancing seal performance.
  • Extending the service life of the o-ring by mitigating wear.

For dynamic applications, selecting a lubricant with appropriate viscosity and thermal stability is vital. The lubricant must maintain its properties under varying temperatures and mechanical stresses to ensure consistent sealing performance.

System Media and Environment

The operating environment and media in contact with the o-ring significantly influence lubricant selection. Key considerations include:

Chemical Compatibility
The lubricant must be chemically compatible with both the o-ring material and the system media. Incompatible lubricants can lead to swelling, softening, or degradation of the o-ring, compromising seal integrity.

Temperature Extremes
Lubricants must perform effectively across the system’s temperature range. At low temperatures, lubricants can become too viscous, hindering o-ring movement and sealing capability. At high temperatures, lubricants may thin excessively or degrade, leading to inadequate lubrication and increased wear.

Regulatory Compliance
In industries such as food processing, pharmaceuticals, or potable water systems, lubricants must meet regulatory standards set by specific government agencies (e.g., NSF, FDA). Using non-compliant lubricants can result in contamination and regulatory violations.

Vacuum and Oxygen Service
For vacuum applications, lubricants should exhibit low vapor pressure to minimize outgassing. In oxygen-rich environments, lubricants must be non-flammable and specifically rated for oxygen service to prevent combustion hazards.

Selecting the appropriate lubricant requires a thorough understanding of the application’s environmental and media conditions. Consulting with material compatibility charts and regulatory guidelines is essential to ensure optimal seal performance and compliance.

Lubricant Compatibility by Material

Lubricant Type Key Chemistry General Pros
Silicone Grease/Oil Methyl Silicone Wide temp range (typically -65°F to 400°F), good with most elastomers, water-resistant, often food-grade. 1
Petroleum-Based Grease/Oil Hydrocarbon (Mineral Oil) Readily available, generally lower cost. 1
PTFE-Based Lubricant Polytetrafluoroethylene (solid additive) in carrier oil Very low friction, good chemical resistance, wide temp range, good with most elastomers including Silicone. 1
PFPE-Based Lubricant Perfluoropolyether Outstanding chemical & temp resistance (-100°F to 550°F+), inert, non-flammable, long-lasting. 31
Ester-Based Lubricant Synthetic or Natural Esters Good friction reduction. Some are biodegradable or temporary assembly aids (e.g., P-80). 24
Dry Film Lubricant (Coating) PTFE, MoS₂, Graphite (as applied coating) Non-migrating, clean (no dirt attraction), good for high load, vacuum, or when wet lubes are undesirable. 20

For high-performance or regulatory applications, confirm all lubricant certifications with the supplier.

How to Apply O-Ring Lubricant

Correctly applying an o-ring lubricant is as critical as the choice of lubricant itself. Incorrect or inconsistent o-ring lubricant application can cause seal failure just as quickly as the wrong material. A consistent, clean process helps protect the seal during installation and supports optimal performance under pressure, temperature, and chemical exposure. There are two key steps to installing an o-ring with lubrication: preparation and application.

Step 1: Preparation

A clean surface is essential before applying lubricant. Contaminants, residual oils, or hardware defects can interfere with seal function and cause localized damage during installation.

  • Clean the o-ring with a lint-free cloth. If needed, use a mild solvent (such as isopropyl alcohol) that is compatible with the elastomer to remove any manufacturing residues or dust.
  • Inspect the o-ring for surface damage, parting lines, or contamination. If any irregularities are found, replace the seal.
  • Check the gland or groove for burrs, scoring, or embedded debris. Any sharp edges or surface flaws can tear or shave the seal during compression.
  • Ensure surfaces are dry before applying lubricant, unless using a water-based lubricant specifically designed for wet application.

This step is especially important for elastomers used in high-purity, food-safe, or vacuum systems, where cleanliness is a performance factor.

Step 2: Lubricant Application

The goal is to create a uniform, low-friction film without overapplying. Excess lubricant can lead to component misalignment or hydraulic lock or attract particulates that damage the seal.

  • Apply a thin, even film of lubricant to the entire surface of the o-ring. A visible sheen is typically sufficient.
  • Avoid pooling. Do not allow excess lubricant to accumulate in the groove or on mating hardware, particularly in precision components or small-volume systems.
  • Use a controlled method.
    • For small quantities: Apply by gloved hand, applicator brush, or finger roll on a clean surface.
    • For larger batches: Place o-rings in a clean, sealable bag or container, add a small amount of lubricant, and tumble gently to ensure even distribution.
  • Double-check orientation before installing the seal. A lubricated o-ring can shift during assembly, especially in vertical or overhead installations.

Common Questions About Applying O-Ring Lubricants

Can you over-lubricate an o-ring?
Yes. Excess lubricant can interfere with proper compression, cause slippage in dynamic applications, or prevent the seal from seating correctly. Use only the amount needed to reduce surface friction.

Do all o-rings need lubrication?
Most o-rings benefit from lubrication. Even in static seals, lubrication reduces installation stress and helps prevent micro-tears. Dynamic applications require lubrication to manage friction and wear.

What’s the best way to apply grease to o-rings?
Use a gloved hand or brush to apply a thin, even layer. Avoid using paper towels or cotton swabs, which can leave lint or fibers on the seal.

Troubleshooting Common Lubrication-Related O-Ring Failures

Identifying how lubrication affects seal performance makes tracing and correcting field issues easier. Most o-ring failures related to lubrication stem from incompatible products, poor application technique, or skipping the step altogether. Knowing what to look for helps prevent repeat problems and guides better specification upstream.

Problem Potential Lubrication-Related Cause Solution
Installation Damage (Tears, Cuts, Twisting) Insufficient or no lubricant applied before installation Always apply a thin film of compatible lubricant to the o-ring just before assembly.
Premature Wear / Abrasion (Dull, Chafed Surface in Dynamic Seals) Insufficient lubrication, wrong lubricant type (low film strength), or contaminated lubricant. Ensure adequate, continuous lubrication with a lubricant designed for dynamic use. Consider internally lubricated o-rings or dry film coatings for harsh conditions.
O-Ring Swelling or Shrinking A classic sign of chemical incompatibility between the lubricant and the o-ring elastomer Rigorously verify lubricant compatibility with the o-ring material and all system media using compatibility charts and manufacturer data.
O-Ring Hardening or Cracking Lubricant breaking down at temperatures beyond its service limit, or chemical attack from an incompatible lubricant Select a lubricant with a temperature range that comfortably exceeds the application’s operational extremes.
