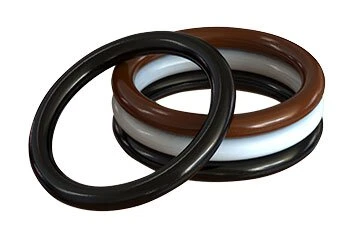

FKM, VITON®, FLUOROCARBON, FPM

General Description:

Viton® O-Ring and seal performance cost benefit makes it the second most popular sealing material. Fluoroelastomer (Viton®, FKM) offers a wide range of resistance to chemicals, oil and heat, with situational service life above 200°C. The outstanding heat stability and excellent resistances are due to the high ratio of fluorine to hydrogen, the strength of the carbon-fluorine bond, and the absence of unsaturation. FKM compounds are widely used in chemical, automotive, aerospace and industrial applications. Fluoroelastomers are referred to generically as FKM polymers per the nomenclature noted in ASTM D1418. In the SAE J200 ASTM D2000 classification system for rubber materials Fluoroelastomers are documented as a “HK”.

Common Names:

FKM, FPM (Europe), Fluoropolymer, Fluoroelastomer. Trade Names: Viton®, Fluorel®, Technoflon®, Dai-El®.

Specialty Performance Polymer Types: A, B, F, GLT, GFLT, XLT, ULT, ETP, TBR.

Features:

Limitations:

Service Temperature Range*:

-17°F (-27°C) to 400o F (225°C)
Specialty formulations, Low Temperature: -67°F (-55°C)
Specialty formulations, High Temperature: 450°F (232°C)

*Approximation for dry air service. Actual temperature range of a compound in an end-use application is highly dependent on part type, hardware configuration, applied forces, chemical media, pressure and thermal cycling effects, and other factors. Consult a Marco Engineer for more details.

FKM Type Comparison Chart

FKM Viton® Type

A

B

F

GF

GLT

GFLT

XLT

ULT

ETP

Aflas®

BRFKM

Marco Commodity Compound number

V1000

V1032

V1088

V1081

V1038

V1033

V1086

V1166

V1020

L1000

L1010

Relative Pricing
Availability

H2S %

2

5

5

5

5

5

10

10

5

20

40

High Temperature Performance F° (C°)
(Basic Static Applications)

400 (204) 400 (204) 400 (204) 400 (204) 400 (204) 400 (204) 400 (204) 400 (204) 400 (204) 450 (232) 450 (232)

Low Temperature Performance F° (C°)
(Basic Static Applications)

-15 (-26) -11 (-24) 1 (-17) 3 (-16) -40 (-40) -29 (-34) -58 (-50) -67 (-55) -6 (-21) 19(-7) 1(-17)
TR-10 Low Temperature Flexibility F° (C°) 1 (-17) 7 (-14) 20 (-7) 21 (-6) -22 (-30) -11 (-24) -40 (-40) -49 (-45) 12 (-11) 37 (3) 20 (-7)
Strong Base, high pH, Caustic, Amines
Low Molecular Weight Carbonyls 100%
concentration (MTBB, MBK, MIBK, etc.)
Engine Lubricating Oil, SG and SH
Aqueous fluids, steam, mineral acids
(H2So4, HNO2)
Aromatic Hydrocarbons (toluene, etc.)
Automotive Fuels Oxygenated with
MEOH, ETOH, MTBE, etc.
Engine Lubricating Oil, SE and SF
Resistance to Compression Set
Automotive and Most Aviation Fuels

Rating Scale:   = Excellent = Good = Not Recommended


Compound and Product Options:

Not a complete list of offerings. Please contact a Marco Sales Consultant or Engineer to discuss additional options. See Popular Compounds list below for compound examples.

  • Internal Lubrication with Silicone oil, Moly and Graphite
  • High purity translucent
  • UL Listed
  • Conductive
  • WRAS, KTW and NSF 51/61 Compliant
  • USP class VI and 3A approved
  • Explosive Decompression Resistant
  • Metal and X-ray detectable
  • Increased steam resistance
  • DuPont Viton® specific
  • Specific and Tight Tolerance
  • Specific AQL Inspection requirement
  • Surface free of silicone oil
  • PTFE or Parylene Coated in choice color
  • Special tumbling for complete flash removal
  • Talcum powder on surface to reduce sticking
  • Specific packaging requirements
  • Special bag and Label requirements
  • Variety of colors available

Popular Compounds:

Hundreds more specialty compounds available. Contact a Marco Sales Consultant or Engineer for more information.

Marco Compound Number Hardness
(Shore A)
Color Low Temp.
°F (°C)
High Temp.
°F (°C)

Features

V1000 View Datasheet 75 Black -15 (-26) 400 (204) General purpose, low cost & high inventory FKM
V1002 View Datasheet 75 Black -15 (-26) 400 (204) AMS-R-83248 M83248/1-### PER MIL-R-83248 TY-1 CL-1, available in a UL recognized grade, compare to Parker V0747-75
V1003 View Datasheet 75 Brown -15 (-26) 400 (204) Brown FKM Viton, improved oxidation resistance, compare to Parker V884-75
V1004 View Datasheet 90 Black -15 (-26) 400 (204) M83248/2-### PER MIL-R-83248C TY 1 CL 2, compare to Parker V0709-90
V1005 View Datasheet 75 Black -40 (-40) 400 (204) M83485/1-XXX PER MIL-R-83485 GLT-type FKM Improved low temp resistance, compare to Parker VM835-75
V1007 View Datasheet 90 Black -15 (-26) 400 (204) General purpose high durometer, good in high pressure and dynamic applications, compare to Parker VA153-90
V1009 View Datasheet 50 Black -15 (-26) 400 (204) General purpose softer FKM, compare to Parker V0986-50
V1010 View Datasheet 60 Black -15 (-26) 400 (204) General purpose softer FKM, compare to Parker V0769-60 and Parco 9009-60
V1012 View Datasheet 75 White -15 (-26) 400 (204) White FKM, improved oxidation resistance, compare to Parker V1033-70
V1019 View Datasheet 75 Black -15 (-26) 400 (204) Internally lubricated with PTFE, reduces surface friction and sticking, similar to Parker V0848-75
V1020 View Datasheet 75 Black -6 (-21) 400 (204) Viton® ETP, base resistant , best chemically resistant FKM, compare to Parker V1260-75
V1033 View Datasheet 75 Black 29 (-34) 400 (204) Viton GFLT® recommended for Oxygenated Automotive Fuels (containing MeOH, EtOH, MTBE, etc. and Aromatic Hydrocarbon Process Fluid Chemicals. Compare to Parker V7594B
V1038 View Datasheet 75 Black -40 (-40) 400 (204) Viton GLT® Low temperature resistance, improved Water, Steam and Mineral Acids resistance
V1044 View Datasheet 95 Black -15 (-26) 400 (204) Very hard extrusion resistant type A FKM, compare to Parker V1238-95 and Parco 9021-95
V1073 View Datasheet 75 Black -15 (-26) 400 (204) FDA and 3A compliant
V1081 View Datasheet 75 Black 3 (-16) 400 (204) Viton® GF-S best value for widest chemical resistance FKM
V1082 View Datasheet 90 Black -40 (-40) 400 (204) AED and extrusion resistant GLT type FKM
V1086 View Datasheet 75 Black -54 (-48) 400 (204) Extended low temperature FKM, Wide chemical resistance including H2S and Oxygenated fuels, compare to Parker V1289-75
V1088 View Datasheet 75 Black -15 (-26) 400 (204) Viton® F material for increased solvent and general chemical resistance
V1090 View Datasheet 90 Black -40 (-40) 400 (204) AED resistant Viton GLT®, Norsok M710 and NACE TM0297 tested
V1118 View Datasheet 70 White -15 (-26) 400 (204) USP class VI medical grade, USDA 3A and FDA compliant
V1148 View Datasheet 70 Black -15 (-26) 400 (204) Metal detectable, FDA compliant type A FKM
V1160 View Datasheet 90 Black -58 (-50) 400 (204) AED resistant, Norsok M710 and NACE T0297 tested Wide chemical resistance including H2S and Oxygenated fuels.
V1166 View Datasheet 70 Black -65 (-54) 400 (204) Ultra-low temperature FKM commercial grade Wide chemical resistance including H2S and Oxygenated fuels.
V1183 View Datasheet 60 Black -40 (-40) 400 (204) Terpolymer GLT type for low temperature applications
V1190 View Datasheet 75 Brown -15 (-26) 400 (204) NSF51 compliant for food contact
