Viton O-Rings

Improve Application Chemical and Temperature Resistance with Viton O-Rings

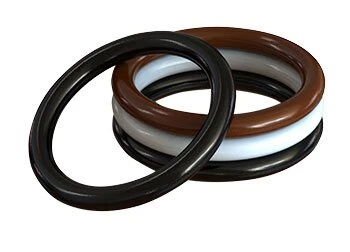

Viton® O-Rings
Viton® O-Rings

Viton ® o-rings from Marco Rubber offer excellent compatibility with a range of chemicals, oils and resist high temperatures up to 400F. Viton is also known as FKM made of fluoroelastomer one of the most versatile and widely used sealing materials.

Marco Rubber stocks all USA standard Viton O-Rings sizes, thousands of metric Viton O-Ring and non-standard sizes. When not in stock most custom Viton O-Rings can be made in a few weeks without tooling fees.

FKM and Viton material types for high temperature seals and chemical resistant gaskets include the following specific types: A, B, F, GLT, GFLT, XLT, ULT, ETP, TBR. View the chart below or contact our experts to learn which is best for your application.

Choose Marco Rubber & Plastics for your Viton O-Rings

For more than 40 years, Marco Rubber & Plastics has been offering custom and standard o-rings and other sealing solutions for multiple industries. With millions of products produced and shipped annually, we are the experts your organization needs to seal the success of your application. Explore standard size o-ring sizes below.
Specialty Resistances
  • Vacuum
  • Most Acids / Chemicals
  • Halogenated Hydrocarbons
  • Di-Ester Lubricants
  • Petroleum Oils / Fuels
  • Silicone Oils / Greases
Limitations
  • Not resistant to Ketones (MEK)
  • Not resistant to Auto / Aircraft Brake Fluids
  • Not resistant to Amines (Ammonia)
  • Not resistant to Acetone, Skydrol, Ethyl Acetate
  • Not resistant to Hot Water and Steam (except specialty grades)
  • Not resistant to Low Molecular Esters and Ethers
Mechanical Properties
  • Good Wear Resistance
  • Excellent Comp. Set Resistance
  • Moderate Short-Term Resilience
  • Excellent Permeation Resistance

Order Viton® O-Rings from the world’s largest Viton® O-Rings inventory network.
FKM and Viton® Material Types: A, B, F, GLT, GFLT, XLT, ULT, ETP, TBR
High Temperature Viton® Seals and Chemical Resistant Viton® Gaskets.

Viton® O-Ring Compatibility and Order Online Viton® O-Rings In Stock for High Temp Chemical Resistance

FKM Viton Type

A

B

F

GF

GLT

GFLT

XLT

ULT

ETP

Aflas ®

BRFKM

Marco Commodity Compound number

V1000

V1032

V1088

V1081

V1038

V1033

V1086

V1166

V1020

L1000

L1010

Relative Pricing O-ring Price Comparison 1O-ring Price Comparison 1O-ring Price Comparison 1O-ring Price Comparison 1O-ring Price Comparison 1O-ring Price Comparison 1O-ring Price Comparison 1O-ring Price Comparison 1O-ring Price Comparison 1O-ring Price Comparison 1O-ring Price Comparison 1O-ring Price Comparison 1O-ring Price Comparison 1O-ring Price Comparison 1O-ring Price Comparison 1O-ring Price Comparison 1O-ring Price Comparison 1O-ring Price Comparison 1O-ring Price Comparison 1O-ring Price Comparison 1O-ring Price Comparison 1O-ring Price Comparison 1O-ring Price Comparison 1O-ring Price Comparison 1O-ring Price Comparison 1O-ring Price Comparison 1O-ring Price Comparison 1O-ring Price Comparison 1O-ring Price Comparison 1O-ring Price Comparison 1
Availability O-ring Price Comparison 1O-ring Price Comparison 1O-ring Price Comparison 1O-ring Price Comparison 1O-ring Inventory Comparison 3O-ring Inventory Comparison 3O-ring Inventory Comparison 2O-ring Inventory Comparison 2O-ring Inventory Comparison 4O-ring Inventory Comparison 4O-ring Inventory Comparison 3

H2S %

2 5 5 5 5 5 10 10 5 20 40

High Temperature Performance F° (C°)
(Basic Static Applications)

437 (225) 437 (225) 437 (225) 437 (225) 437 (225) 437 (225) 437 (225) 437 (225) 437 (225) 450 (232) 450 (232)

Low Temperature Performance F° (C°)
(Basic Static Applications)

-15 (-26) -11 (-24) 1 (-17) 3 (-16) -40 (-40) -29 (-34) -54 (-48) -65 (-54) -6 (-21) 25 (-4) 1 (-17)
TR-10 Low Temperature Flexibility F° (C°) 1 (-17) 7 (-14) 20 (-7) 21 (-6) -22 (-30) -11 (-24) -40 (-40) -49 (-45) 12 (-11) 37 (3) 20 (-7)
Strong Base, high pH, Caustic, Amines Rating Symbol Not RecommendedRating Symbol Not RecommendedRating Symbol Not RecommendedRating Symbol Not RecommendedRating Symbol Not RecommendedRating Symbol Not RecommendedRating Symbol Not RecommendedRating Symbol Not RecommendedRating Symbol RecommendedRating Symbol RecommendedRating Symbol Recommended
Low Molecular Weight Carbonyls 100%
concentration (MTBB, MBK, MIBK, etc.)
Rating Symbol Not RecommendedRating Symbol Not RecommendedRating Symbol Not RecommendedRating Symbol Not RecommendedRating Symbol Not RecommendedRating Symbol Not RecommendedRating Symbol RecommendedRating Symbol RecommendedRating Symbol RecommendedRating Symbol RecommendedRating Symbol Recommended
Engine Lubricating Oil, SG and SH Rating Symbol Not RecommendedRating Symbol RecommendedRating Symbol RecommendedRating Symbol Excellent RecommendedRating Symbol RecommendedRating Symbol Excellent RecommendedRating Symbol RecommendedRating Symbol RecommendedRating Symbol Excellent RecommendedRating Symbol Excellent RecommendedRating Symbol Excellent Recommended
Aqueous fluids, steam, mineral acids
(H2So4, HNO2)
Rating Symbol Not RecommendedRating Symbol RecommendedRating Symbol RecommendedRating Symbol Excellent RecommendedRating Symbol Excellent RecommendedRating Symbol Excellent RecommendedRating Symbol Excellent RecommendedRating Symbol Excellent RecommendedRating Symbol Excellent RecommendedRating Symbol Excellent RecommendedRating Symbol Excellent Recommended
Aromatic Hydrocarbons (toluene, etc.) Rating Symbol RecommendedRating Symbol Excellent RecommendedRating Symbol Excellent RecommendedRating Symbol Excellent RecommendedRating Symbol RecommendedRating Symbol Excellent RecommendedRating Symbol Excellent RecommendedRating Symbol Excellent RecommendedRating Symbol Excellent RecommendedRating Symbol RecommendedRating Symbol Excellent Recommended
Automotive Fuels Oxygenated with
MEOH, ETOH, MTBE, etc.
Rating Symbol RecommendedRating Symbol Excellent RecommendedRating Symbol Excellent RecommendedRating Symbol Excellent RecommendedRating Symbol RecommendedRating Symbol Excellent RecommendedRating Symbol Excellent RecommendedRating Symbol Excellent RecommendedRating Symbol Excellent RecommendedRating Symbol Excellent RecommendedRating Symbol Excellent Recommended
Engine Lubricating Oil, SE and SF Rating Symbol RecommendedRating Symbol Excellent RecommendedRating Symbol Excellent RecommendedRating Symbol Excellent RecommendedRating Symbol Excellent RecommendedRating Symbol Excellent RecommendedRating Symbol Excellent RecommendedRating Symbol Excellent RecommendedRating Symbol Excellent RecommendedRating Symbol Excellent RecommendedRating Symbol Excellent Recommended
Resistance to Compression Set Rating Symbol Excellent RecommendedRating Symbol RecommendedRating Symbol RecommendedRating Symbol RecommendedRating Symbol RecommendedRating Symbol RecommendedRating Symbol RecommendedRating Symbol RecommendedRating Symbol RecommendedRating Symbol RecommendedRating Symbol Recommended
Automotive and Most Aviation Fuels Rating Symbol Excellent RecommendedRating Symbol Excellent RecommendedRating Symbol Excellent RecommendedRating Symbol Excellent RecommendedRating Symbol Excellent RecommendedRating Symbol Excellent RecommendedRating Symbol Excellent RecommendedRating Symbol Excellent RecommendedRating Symbol Excellent RecommendedRating Symbol Excellent RecommendedRating Symbol Excellent Recommended

Rating Scale: Rating Symbol Excellent Recommended = Excellent Rating Symbol Recommended = Good Rating Symbol Not Recommended = Not Recommended

FKM and Viton® O-Rings Material Compound Comparison:

Hundreds more specialty compounds available. Contact a Marco Sales Consultant or Engineer for more information.

Compound #DatasheetHardness
(Shore A)
ColorLow Temp.
°F (°C)
High Temp.
°F (°C)
Features
Scroll Down for More
V1000 75 Black -15 (-26) 437 (225) General purpose, low cost & high inventory FKM Get QuoteBuy Online
V1002 75 Black -15 (-26) 437 (225) AMS-R-83248 M83248/1-### PER MIL-R-83248 TY-1 CL-1, available in a UL recognized grade, compare to Parker V0747-75 Get QuoteBuy Online
V1003 75 Brown -15 (-26) 437 (225) Brown FKM Viton, improved oxidation resistance, compare to Parker V884-75 Get QuoteBuy Online
V1004 90 Black -15 (-26) 437 (225) M83248/2-### PER MIL-R-83248C TY 1 CL 2, compare to Parker V0709-90 Get QuoteBuy Online
V1005 75 Black -40 (-40) 437 (225) M83485/1-XXX PER MIL-R-83485 GLT-type FKM Improved low temp resistance, compare to Parker VM835-75 Get QuoteBuy Online
V1007 90 Black -15 (-26) 437 (225) General purpose high durometer, good in high pressure and dynamic applications, compare to Parker VA153-90 Get QuoteBuy Online
V1009 50 Black -15 (-26) 437 (225) General purpose softer FKM, compare to Parker V0986-50 Get QuoteBuy Online
V1010 60 Black -15 (-26) 437 (225) General purpose softer FKM, compare to Parker V0769-60 and Parco 9009-60 Get QuoteBuy Online
V1012 75 White -15 (-26) 437 (225) White FKM, improved oxidation resistance, compare to Parker V1033-70 Get QuoteBuy Online
V1019 75 Black -15 (-26) 437 (225) Internally lubricated with PTFE, reduces surface friction and sticking, similar to Parker V0848-75 Get QuoteBuy Online
V1020 75 Black -6 (-21) 437 (225) Viton® ETP, base resistant , best chemically resistant FKM, compare to Parker V1260-75 Get QuoteBuy Online
V1033 75 Black -29 (-34) 437 (225) Viton GFLT® recommended for Oxygenated Automotive Fuels (containing MeOH, EtOH, MTBE, etc. and Aromatic Hydrocarbon Process Fluid Chemicals. Compare to Parker V7594B Get QuoteBuy Online
V1038 75 Black -40 (-40) 437 (225) Viton GLT® Low temperature resistance, improved Water, Steam and Mineral Acids resistance Get QuoteBuy Online
V1044 95 Black -15 (-26) 437 (225) Very hard extrusion resistant type A FKM, compare to Parker V1238-95 and Parco 9021-95 Get QuoteBuy Online
V1073 75 Black -15 (-26) 437 (225) FDA and 3A compliant Get QuoteBuy Online
V1081 75 Black 3 (-16) 437 (225) Viton® GF-S best value for widest chemical resistance FKM Get QuoteBuy Online
V1082 90 Black -40 (-40) 437 (225) AED and extrusion resistant GLT type FKM Get QuoteBuy Online
V1086 75 Black -54 (-48) 437 (225) Extended low temperature FKM, Wide chemical resistance including H2S and Oxygenated fuels, compare to Parker V1289-75 Get QuoteBuy Online
V1088 75 Black +1 (-17) 437 (225) Viton® F material for increased solvent and general chemical resistance Get QuoteBuy Online
V1090 90 Black -40 (-40) 437 (225) AED resistant Viton GLT®, Norsok M710 and NACE TM0297 tested Get QuoteBuy Online
V1118 70 White -15 (-26) 437 (225) USP class VI medical grade, USDA 3A and FDA compliant Get QuoteBuy Online
V1148 70 Black -15 (-26) 437 (225) Metal detectable, FDA compliant type A FKM Get QuoteBuy Online
V1160 90 Black -50 (-46) 437 (225) AED resistant, Norsok M710 and NACE T0297 tested Wide chemical resistance including H2S and Oxygenated fuels. Get QuoteBuy Online
V1166 70 Black -54 (-48) 437 (225) Ultra-low temperature FKM commercial grade Wide chemical resistance including H2S and Oxygenated fuels. Get QuoteBuy Online
V1183 60 Black -40 (-40) 437 (225) Terpolymer GLT type for low temperature applications Get QuoteBuy Online
V1190 75 Brown -15 (-26) 437 (225) NSF51 compliant for food contact Get QuoteBuy Online

Sorry, no results found.

Reset Filters


FKM and Viton® O-Rings Temperature Range:

The temperature ranges presented above are approximations for dry air service only and should not be used to determine design specifications or end-use temperature limits. Actual temperature range of a compound in an end-use application is highly dependent on part type, hardware configuration, applied forces, chemical media, pressure and thermal cycling effects, and other factors. The most practical way of determining an end-use temperature range is testing in the actual application conditions. Consult a Marco Engineer for more details.

FKM Trade Names:

Viton®, Fluorel®, Technoflon®, Dai-El®

Common Names:

FKM, FPM (Europe), Fluoropolymer, Fluoroelastomer

FKM and Viton® O-Rings Features:

  • Outstanding heat stability
  • Situational service life above 200°C
  • Excellent resistance to acids, fuels, mineral and vegetable oils and greases, aliphatic, aromatic and chlorinated hydrocarbons, non-flammable hydraulic fluids (HFD) and many organic solvents and chemicals.
  • Excellent resistance to aging and ozone.
  • Low gas permeability, low compression set.

Limitations:

  • Ketones (MEK,and Acetone) and Skydrol fluids.
  • Amines and Anhydrous Ammonia.
  • Low molecular weight esters and ethers. Hot hydrofluoric or chlorosulfonic acids and low molecular weight organic acids (formic and acetic acids).
  • Polar solvents, low molecular weight organic solvents and glycol-based brake fluids

FKM and Viton® O-Rings Specialty Performance Polymer Types:

A, B, F, GLT, GFLT, XLT, ULT, ETP, TBR

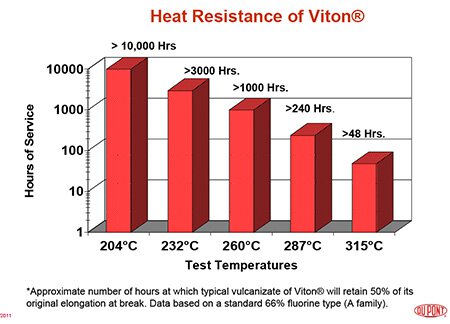

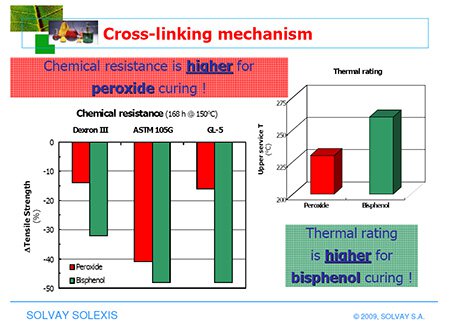

Viton Heat Resistance ComparisonViton Cure System Performance Comparison


FKM and Viton® O-Rings Compound and Product Options:

Not a complete list of offerings. Please contact a Marco Sales Consultant or Engineer to discuss additional options. See Popular Compounds list below for compound examples.

  • Internal Lubrication with Silicone oil, Moly and Graphite
  • High purity translucent
  • UL Listed
  • Conductive
  • WRAS, KTW and NSF 51/61 Compliant
  • USP class VI and 3A approved
  • Explosive Decompression Resistant
  • Metal and X-ray detectable
  • Increased steam resistance
  • DuPont Viton® specific
  • Specific and Tight Tolerance
  • Specific AQL Inspection requirement
  • Surface free of silicone oil
  • PTFE or Parylene Coated in choice color
  • Special tumbling for complete flash removal
  • Talcum powder on surface to reduce sticking
  • Specific packaging requirements
  • Special bag and Label requirements
  • Variety of colors available

Fluoroelastomers are referred to generically as FKM polymers per the nomenclature noted in ASTM D1418. In the SAE J200 ASTM D2000 classification system for rubber materials Fluoroelastomers are documented as a “HK”.
